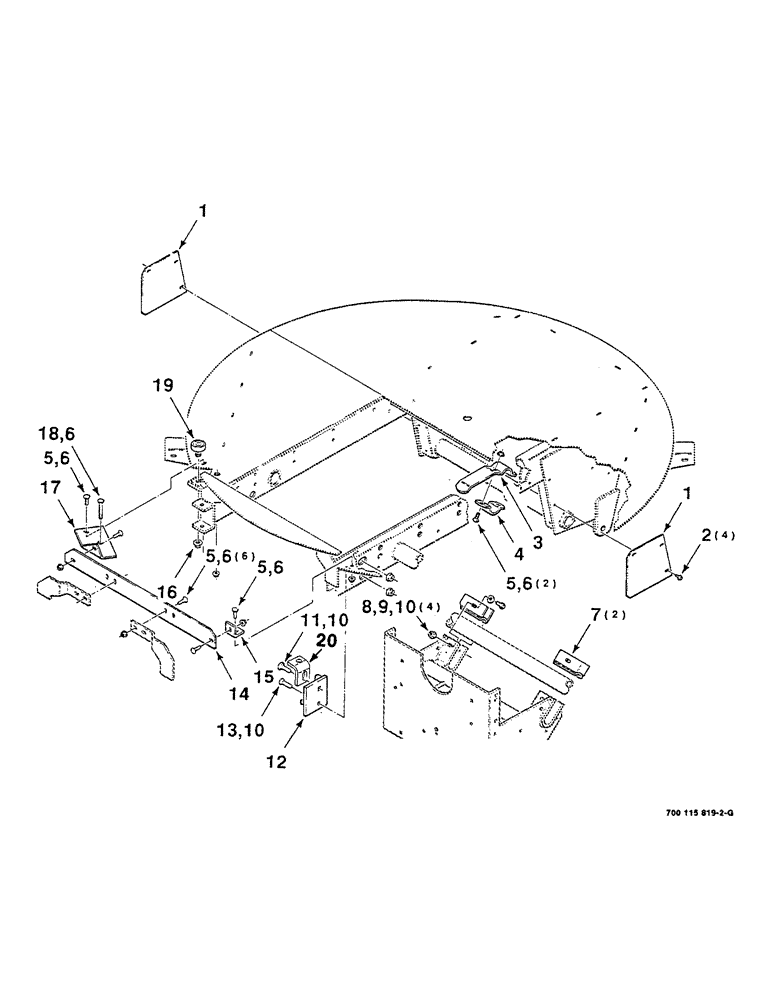

Запчасти Case IH 8610 (7-06) - CONTAINER FLOOR ASSEMBLY (64) - CHOPPING

1

700117322

SHIELD

2шт.

2

281-34912

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 X 3/4 HWHTCTS

4шт.

3

700117596

CLAMP

- half, upper

1шт.

4

700117597

CLAMP

- half, lower

1шт.

5

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 RHSNB

10шт.

6

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

11шт.

7

700115033

SPECIAL WASHER

BLOCK - pivot

2шт.

8

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

4шт.

9

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

4шт.

10

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

6шт.

11

433-1032

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

5/8-11 X 2 RHSNB

1шт.

12

700117328

SUPPORT

1шт.

13

61-46224

HEX SOC SCREW,FLAT, 5/8" x 1-1/2"

5/8-11 X 1-1/2 HSFCHCS

1шт.

14

700115028

STRAP

- front

1шт.

15

700109955

ANGLE

- reinforcement

1шт.

16

7775067

FLANGE NUT,Flg, 3/4"-16, G8

3/4-16 HFTLN

1шт.

17

700117321

PLATE

- filler, right

1шт.

18

433-852

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3 1/4", Gr 5

1/2-13 X 3-1/4 RHSNB

1шт.

19

7713829

BEARING ASSY,19.56 mm ID x 63.75 mm OD

1шт.

20

700124959

ANGLE

- reinforcement

1шт.
