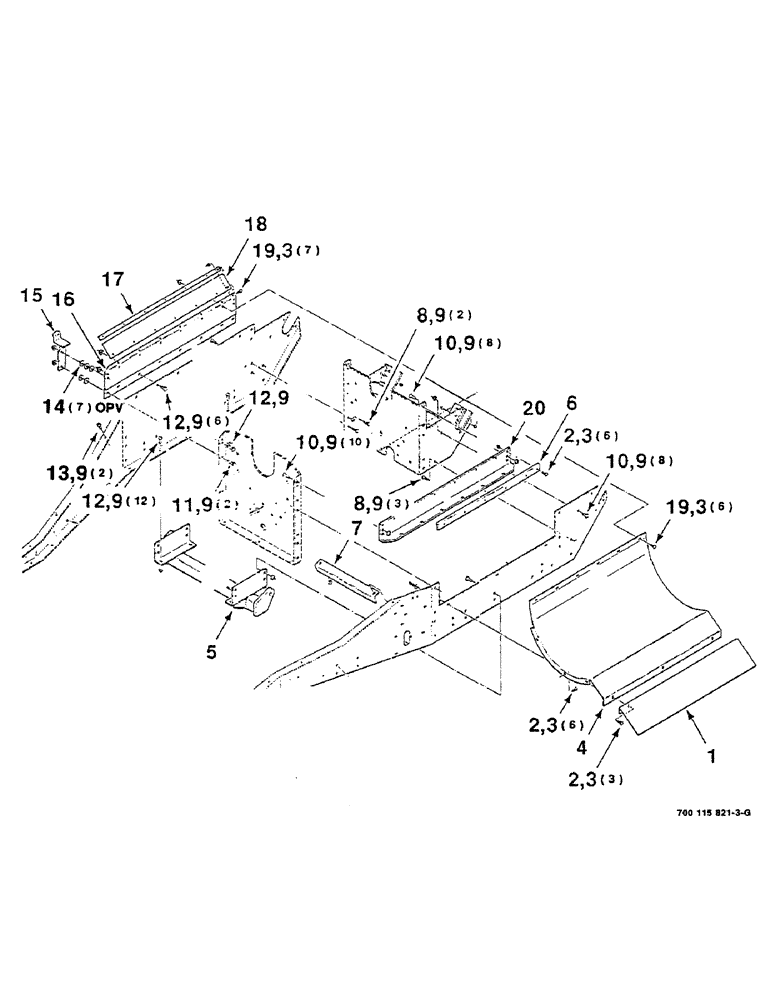

Запчасти Case IH 8610 (7-02) - MAINFRAME ROTOR HOUSING ASSEMBLY, SERIAL NUMBER CFH0036001 THRU CFH0096411 (64) - CHOPPING

1

700117369

SHIELD

- cylinder, hydraulic

1шт.

2

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

15шт.

3

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

28шт.

4

700117359

PANEL

- lower

1шт.

5

700108851

WASHER

ANCHOR WA - cylinder

1шт.

6

700117611

FILLER

- rotor, left

1шт.

7

700117367

ANGLE

- reinforcement

1шт.

8

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 X 1-1/2 RHSNB

5шт.

9

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

54шт.

10

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 RHSNB

26шт.

11

433-832

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

1/2-13 X 2 RHSNB

2шт.

12

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 X 1 RHSNB

19шт.

13

360-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1/2-13 X 1 HFS GR8

2шт.

14

700711557

WASHER

1/2 HARDENED WIDE PLAIN WASHER

7шт.

15

700117343

SUPPORT

- right

1шт.

16

700117364

SUPPORT

- pan, right

1шт.

17

700117506

STRAP

- support

1шт.

18

700117375

FILLER

- rotor, right

1шт.

19

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

13шт.

20

700117365

ANGLE

- left

1шт.
