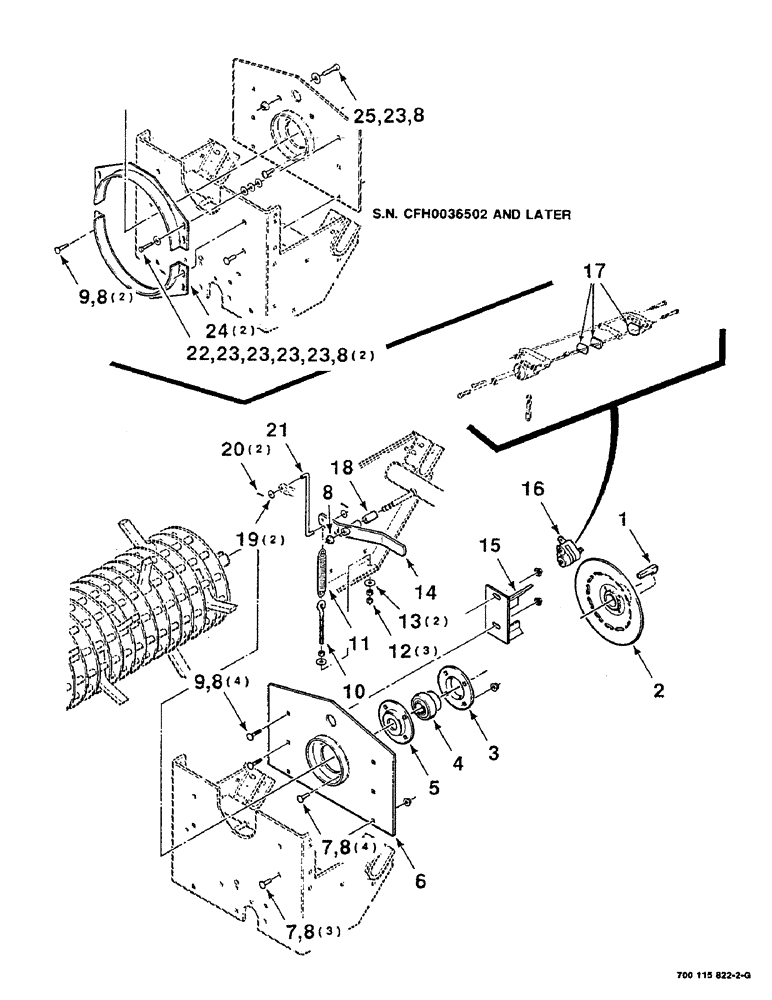

Запчасти Case IH 8610 (5-06) - ROTOR AND BRAKE ASSEMBLY (64) - CHOPPING

1

61747

KEY

1/2 X 1/2 X 2-1/2 GIB KEY

1шт.

2

700117329

BRAKE

DISC - brake

1шт.

3

714360

FLANGED BEARING

FLANGE - bearing, inner

1шт.

4

712158

SPHERICAL BEARING,2" ID x 100 mm OD

BEARING - spherical

1шт.

5

700118628

FLANGE

- bearing

1шт.

6

700117372

PANEL

- end, rotor

1шт.

7

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 RHSNB

7шт.

8

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

17шт.

9

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 X 1-1/2 RHSNB

6шт.

10

51200285

SCREW

3/8-16 X 7 EYEBOLT

1шт.

11

R31412

SPRING

- extension

1шт.

12

425-106

NUT,3/8"-16, Cl 5

3шт.

13

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

14

700117591

PIVOT

ARM - pivot, brake

1шт.

15

700117594

MOUNTING PARTS

SUPPORT - brake

1шт.

16

700708796

CALIPER

BRAKE - disc, caliper

1шт.

17

700708805

KIT

- lining repair, brake

1шт.

18

6865851

SPACER

1шт.

19

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4 HARDENED PLAIN WASHER

2шт.

20

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

2шт.

21

700117595

ROD

- linkage, brake

1шт.

22

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

23

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

9шт.

24

700122793

SHIELD

- rotor

2шт.

25

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.
