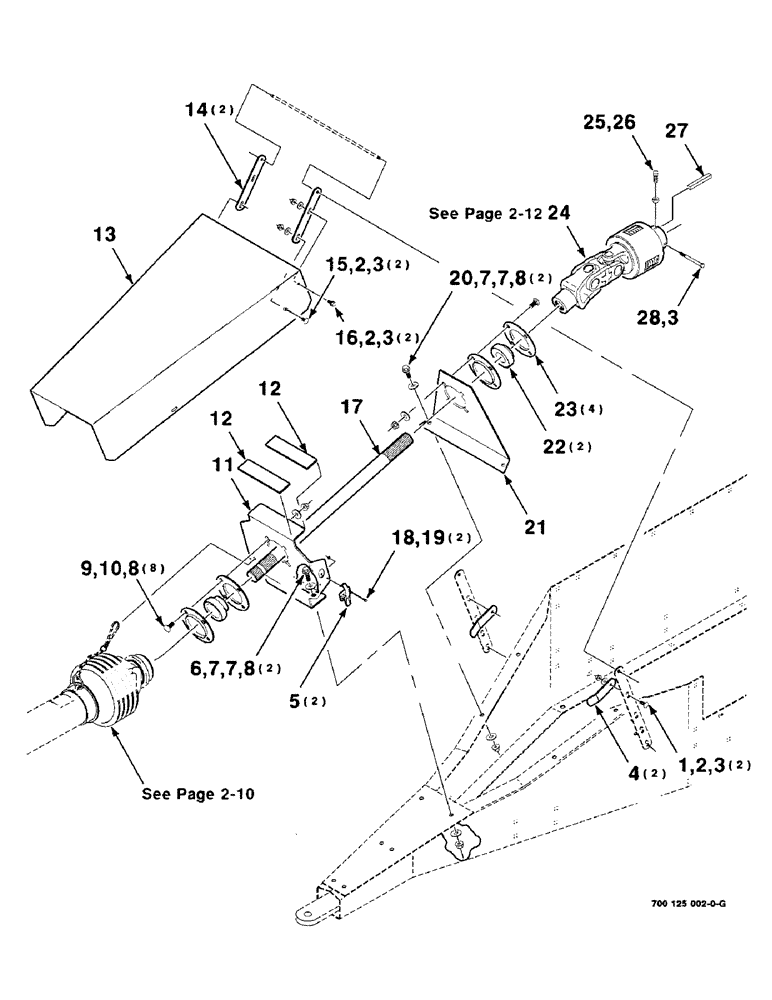

Запчасти Case IH 8610 (5-04) - ROTOR DRIVE AND SHIELD ASSEMBLY, SERIAL NUMBER CFH0096512 AND LATER (64) - CHOPPING

1

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

2шт.

2

496-81010

WASHER

3/8 HARDENED WIDE PLAIN WASHER

6шт.

3

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

7шт.

4

700124908

GUIDE

2шт.

5

700706849

LATCH

2шт.

6

8701237

BOLT

1/2-13 X 1-1/2 HFS GR8

2шт.

7

700711557

WASHER

1/2 HARDENED WIDE PLAIN WASHER

8шт.

8

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

12шт.

9

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 RHSNB

8шт.

10

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

8шт.

11

700136013

PLATE

WA - Mtg, front

1шт.

12

6805055

SEAL

(10 foot bulk)

2шт.

13

700124987

SHIELD

- drive

1шт.

14

700124988

STRAP

2шт.

15

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

2шт.

16

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

2шт.

17

700124989

SHAFT

1шт.

18

63-31010

SCREW,Hex Wash Hd, #10-24 x 5/8"

#10-24 X 5/8 HWHMS

2шт.

19

225-14110

NUT,#10-24

2шт.

20

700710984

SCREW,Hex Flg, 1/2" x 1 1/4", G8 NC

1/2-13 X 1-1/4 HFS GR8

2шт.

21

700125001

PLATE

- rear

1шт.

22

51318

BEARING

- spherical

2шт.

23

50583

FLANGED BEARING

4шт.

24

700715849

JOINT

DOUBLE - U-Joint ASM

1шт.

25

708081

SET SCREW,Sq Hd, 1/2"-13 x 1 1/4"

1/2-13 X 1-1/4 CPSQHSS

1шт.

26

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

27

6595805

BUCKET TOOTH KEY

1/2 X 4 KEY

1шт.

28

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

3/8-16 X 4 C

1шт.
