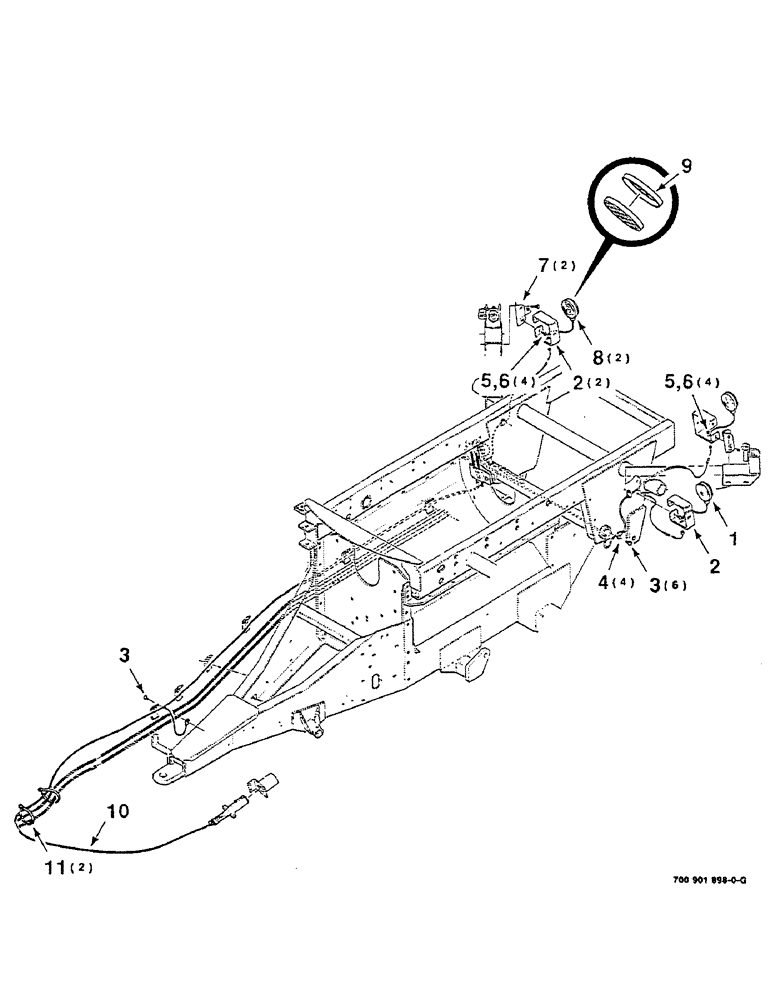

Запчасти Case IH 8610 (9-08) - WARNING LIGHT KIT ASSEMBLY, HK50511 WARNING LIGHT KIT COMPLETE, TO BE ORDERED THRU WHOLEGOODS ONLY (55) - ELECTRICAL SYSTEMS

HK50511

WARNING LIGHT KIT COMPLETE

1шт.

1

700710290

LAMP, TAIL

LIGHT - tail

1шт.

2

700117985

GUARD

- light

3шт.

3

7702012

SELF-TAP SCREW,3/8" - 16 x 1"

3/8-16 X 1 HWHTCTS

7шт.

4

700703825

CLAMP

- line

4шт.

5

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

8шт.

6

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

8шт.

7

700117984

ANGLE

- mounting, light

2шт.

8

700708036

SIDE LAMP ASSY

LIGHT - flasher (Includes item 9)

2шт.

9

700711749

LENS

- flasher

1шт.

10

700708584

HARNESS

- wiring

1шт.

11

7021728

STRAP

TIE - cable

2шт.
