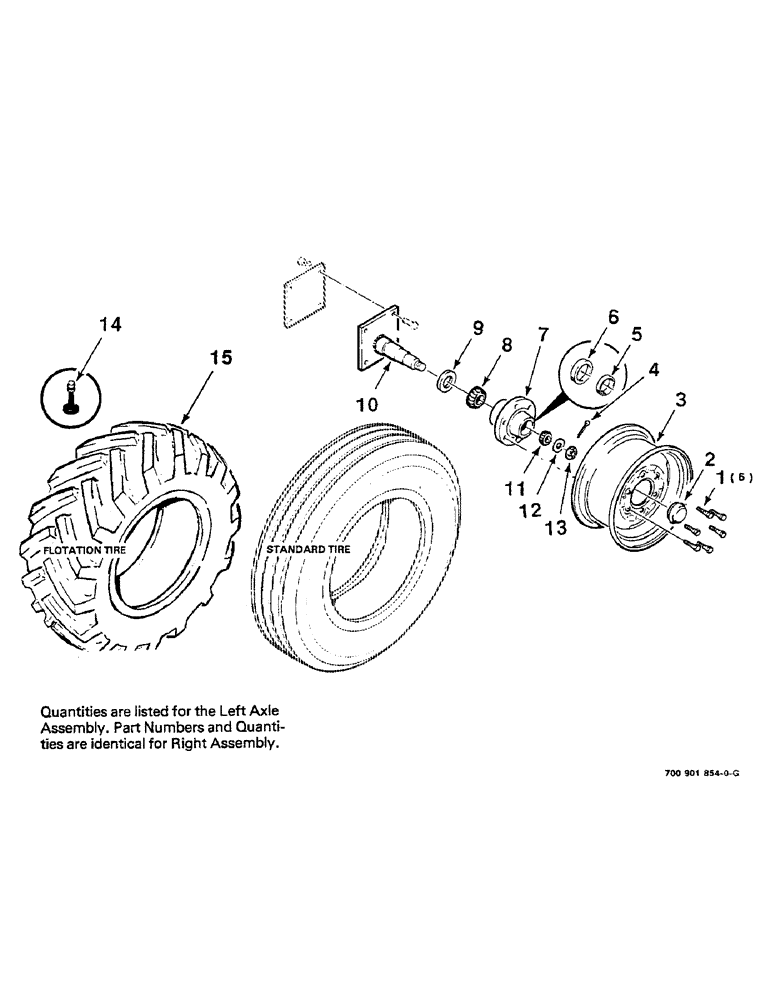

Запчасти Case IH 8610 (3-4) - WHEEL AND HUB ASSEMBLY (44) - WHEELS

1

T52730

WHEEL BOLT

9/16-18 X 1-1/8 WHEEL BOLT

6шт.

2

D143405

CAP

- hub

1шт.

3

A57879

RIM

WHEEL - 15" x 8 (Standard tire)

1шт.

700707982

RIM

WHEEL - 15" x 10L (Flotation tire)

1шт.

4

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

1шт.

5

165964R1

BEARING CUP

CUP - bearing, outer

1шт.

6

130503H

BEARING CUP

CUP - bearing, inner

1шт.

7

026690

HUB

ASSEMBLY (Includes items 5 & 6)

1шт.

8

300426R91

BEARING ASSY,45.618 mm ID x 25.4 mm

CONE - bearing, inner

1шт.

9

491715R91

OIL SEAL

1шт.

10

6546345

SPINDLE

1шт.

11

560953R91

BEARING ASSY,1.375" ID x 2.875" OD x 0.9688"

CONE - bearing, outer

1шт.

12

26971

WASHER

1шт.

13

425-1314

SLOTTED NUT,7/8"-14, G5

7/8-14 SLOTTED HEX NUT

1шт.

14

A38261

VALVE

STEM - valve (Flotation)

1шт.

15

827253

TYRE/TIRE

TIRE - flotation 12.5 x 15

1шт.
