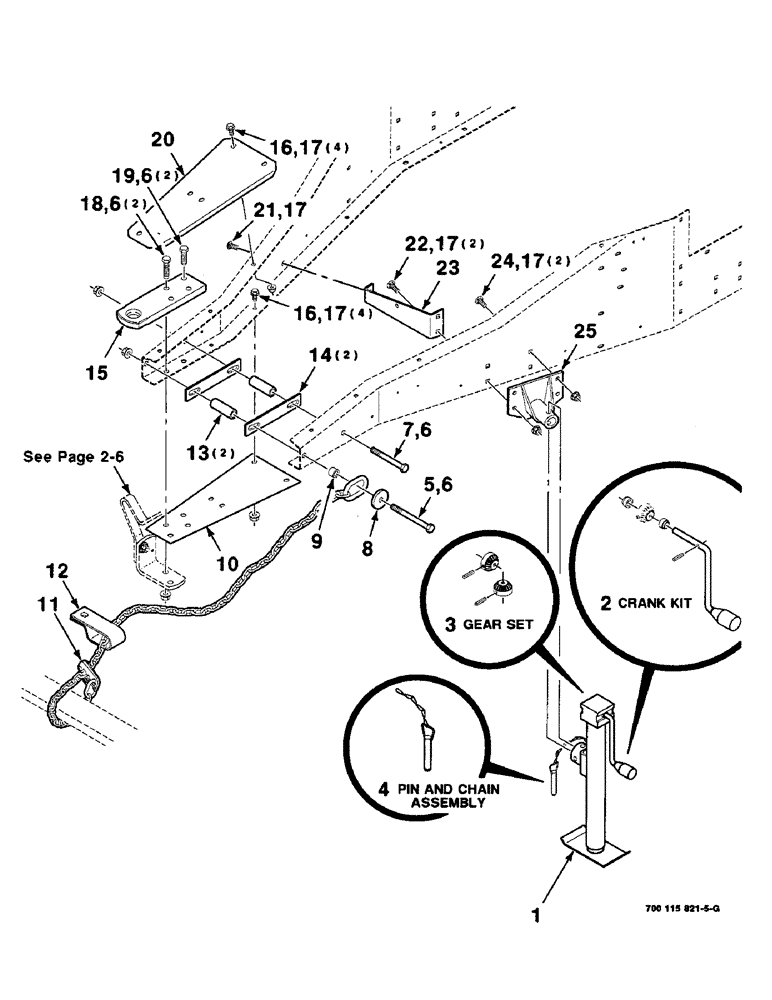

Запчасти Case IH 8610 (2-04) - HITCH, SAFETY CHAIN AND JACK ASSEMBLY, SERIAL NUMBER CFH0096512 AND LATER (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

700709385

JACK

(Incl. items 2, 3 & 4)

1шт.

2

700702060

CRANKED HANDLE

CRANK KIT

1шт.

3

700702059

KIT

GEAR SET

1шт.

4

700709409

LINK CHAIN

PIN AND CHAIN ASSEMBLY

1шт.

5

413-10104

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

1шт.

6

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

6шт.

7

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

5/8-11 X 5-1/2 C

1шт.

8

6561351

CAP WASHER

1шт.

9

700105398

SPACER

1шт.

10

700117348

PLATE

- reinf, lower

1шт.

11

700705598

CHAIN (CE)

CHAIN - safety

1шт.

12

700117987

STOP

LOOP - safety chain

1шт.

13

6549547

SPACER

2шт.

14

700117628

WEDGE

2шт.

15

700117360

PLATE

- hitch, lower

1шт.

16

360-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1/2-13 X 1 HFS GR8

8шт.

17

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

13шт.

18

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

5/8-11 X 2-3/4 C

2шт.

19

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

C Hex, 5/8"-11 x 2", G5

2шт.

20

700117361

PLATE

- reinf, top

1шт.

21

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 X 1 RHSNB

1шт.

22

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 X 1-1/2 RHSNB

2шт.

23

700117362

SUPPORT

1шт.

24

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 RHSNB

2шт.

25

700108873

ANCHOR

MOUNTING WA - jack

1шт.
