Запчасти Case IH 8610 (2-02) - HITCH, SAFETY CHAIN AND JACK ASSEMBLY, SERIAL NUMBER CFH0036001 THRU CFH0096511 (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

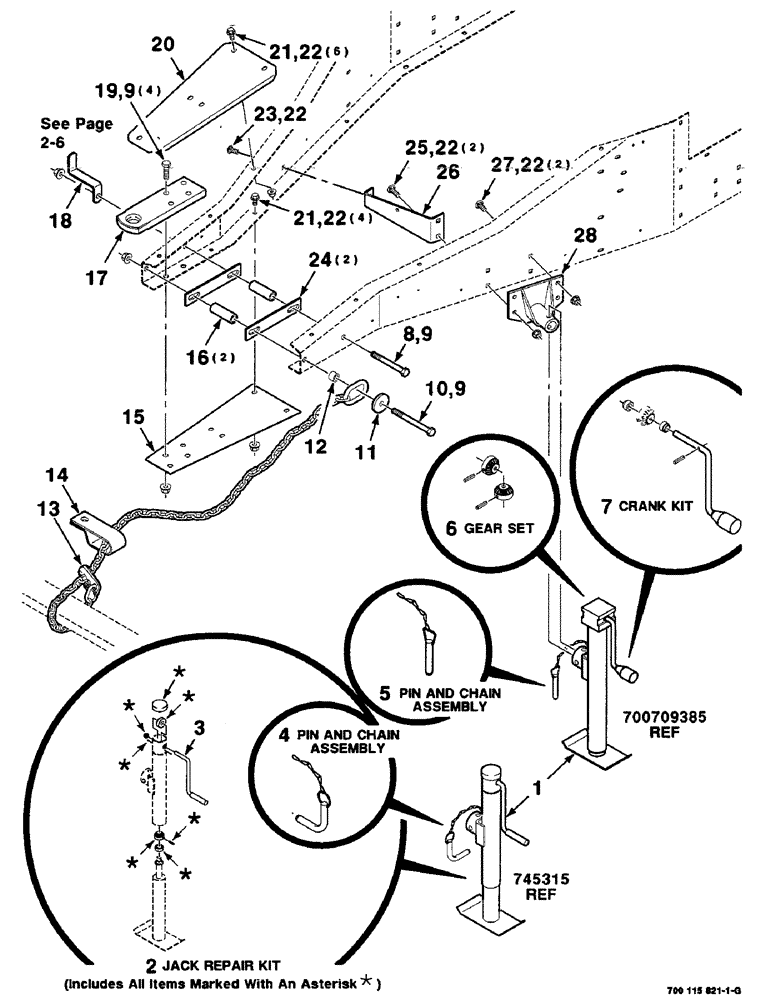

Схема запчастей Case IH 8610 - (2-02) - HITCH, SAFETY CHAIN AND JACK ASSEMBLY, SERIAL NUMBER CFH0036001 THRU CFH0096511 (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
27
23
26
2
11
8
13
22
25
4
20
22
21
24
28
9
5
14
17
3
21
9
9
16
10
22
1
22
15
18
7
6
12
22
19

Артикул

Название

Примечание

Количество

1

745315

JACK

(Includes items 2-4)

1шт.

700709385

JACK

(Incl. items 5-7)

1шт.

2

7753858

PACKAGE, REPAIR

JACK REPAIR KIT

1шт.

3

755975

CRANK

HANDLE

1шт.

4

756007

PIN

AND CHAIN ASSEMBLY

1шт.

5

700709409

LINK CHAIN

PIN AND CHAIN ASSEMBLY

1шт.

6

700702059

KIT

GEAR SET

1шт.

7

700702060

CRANKED HANDLE

CRANK KIT

1шт.

8

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

5/8-11 X 5-1/2 C

1шт.

9

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

6шт.

10

413-10104

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

1шт.

11

6561351

CAP WASHER

1шт.

12

700105398

SPACER

1шт.

13

700705598

CHAIN (CE)

CHAIN - safety

1шт.

14

700117987

STOP

LOOP - safety chain

1шт.

15

700117348

PLATE

- reinf, lower

1шт.

16

6549547

SPACER

2шт.

17

700117360

PLATE

- hitch, lower

1шт.

18

700117368

SUPPORT

(Superseded by (7) parts)

1шт.

19

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

C Hex, 5/8"-11 x 2", G5

4шт.

20

700117361

PLATE

- reinf, top

1шт.

21

360-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1/2-13 X 1 HFS GR8

10шт.

22

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

15шт.

23

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 X 1 RHSNB

1шт.

24

700117628

WEDGE

2шт.

25

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 X 1-1/2 RHSNB

2шт.

26

700117362

SUPPORT

1шт.

27

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 RHSNB

2шт.

28

700108873

ANCHOR

MOUNTING WA - jack

1шт.

Выбрано товаров: 29
