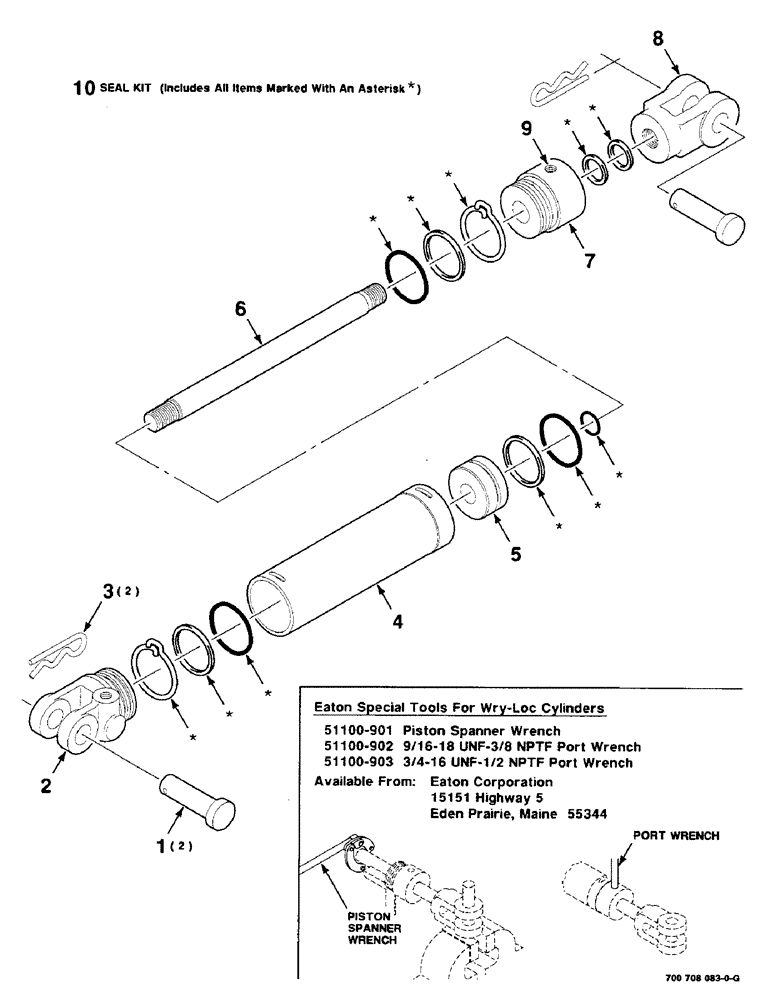

Запчасти Case IH 8610 (8-22) - CYLINDER HYDRAULIC ASSEMBLY, 700708083 CYLINDER HYDRAULIC ASSEMBLY COMPLETE, 3" BORE X 16" STROKE (35) - HYDRAULIC SYSTEMS

700708083

CYLINDER

- hydraulic assembly complete (3 inch bore x 16 inch stroke)

1шт.

1

700704925

CLEVIS PIN

PIN - clevis

2шт.

2

700700105

HEAD

WITH CLEVIS

1шт.

3

S120261

PIN

.148 WIRE HAIR PIN COTTER

2шт.

4

700708459

TUBE ASSY.

BARREL - cylinder

1шт.

700710261

TUBE ASSY.

BARREL (Ends of I.D. are chamfered for O-Ring repair kit)

1шт.

5

700707145

PISTON

- cylinder (Sub. 700710259 piston and 700710260 seal and O-Ring repair kit)

1шт.

H436684

JACK PISTON

PISTON - cylinder

1шт.

700710260

SEAL KIT

AND O-RING KIT

1шт.

6

700708458

ROD

- piston

1шт.

7

700707144

BUSHING

BEARING - cylinder rod

1шт.

8

700708460

END

CLEVIS - rod end

1шт.

9

700708462

ORIFICE

1шт.

10

700704850

SEAL KIT

SEAL AND O-RING REPAIR KIT

1шт.

700710260

SEAL KIT

AND O-RING REPAIR KIT

1шт.
