(8-20) - CYLINDER HYDRAULIC ASSEMBLY, 700712023 CYLINDER HYDRAULIC ASSY. COMPLETE, 2-1/2" BORE X 16" STROKE

Запчасти Case IH 8610 (8-20) - CYLINDER HYDRAULIC ASSEMBLY, 700712023 CYLINDER HYDRAULIC ASSY. COMPLETE, 2-1/2" BORE X 16" STROKE (35) - HYDRAULIC SYSTEMS

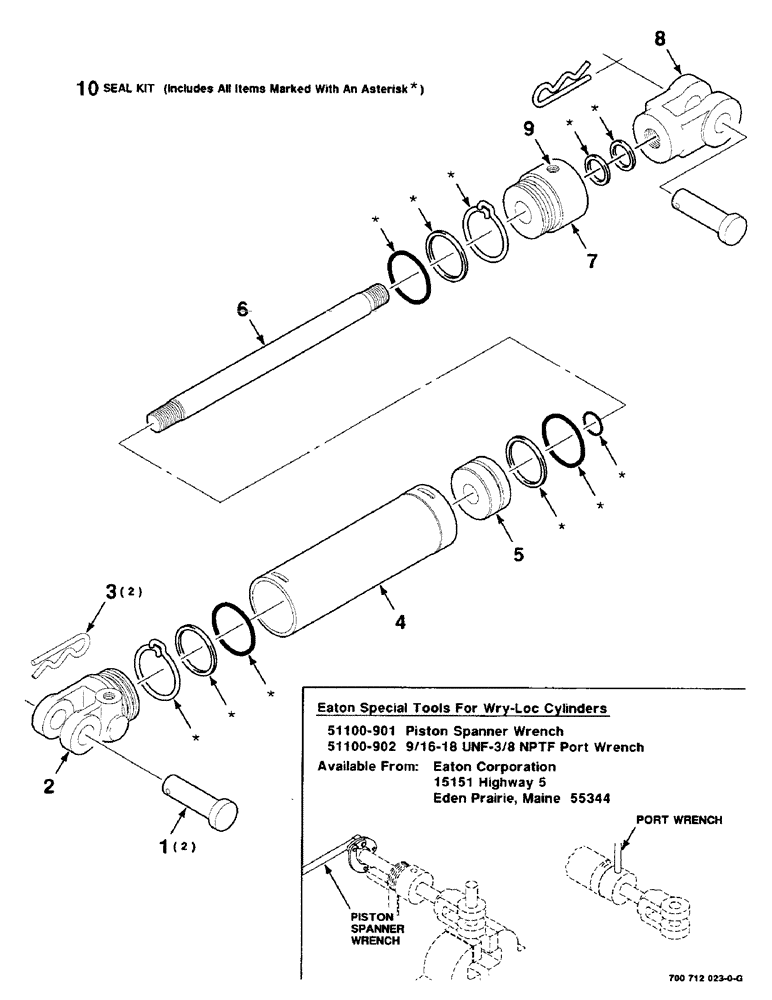

Схема запчастей Case IH 8610 - (8-20) - CYLINDER HYDRAULIC ASSEMBLY, 700712023 CYLINDER HYDRAULIC ASSY. COMPLETE, 2-1/2" BORE X 16" STROKE (35) - HYDRAULIC SYSTEMS
1
4
5
7
6
2
3
10
9
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700712023

CYLINDER

- hydraulic assembly complete (2-1/2 inch bore x 16 inch stroke)

1шт.

1

700704925

CLEVIS PIN

PIN - clevis

2шт.

2

700704894

CYLINDER HEAD

HEAD WITH CLEVIS

1шт.

3

S120261

PIN

.148 WIRE HAIR PIN COTTER

2шт.

4

700712116

SLEEVE CYLINDER

BARREL - cylinder

1шт.

5

102905A1

PISTON

- cylinder

1шт.

6

700704921

ROD

- piston

1шт.

7

102909A1

BEARING

- cylinder rod

1шт.

8

700704920

ROD ASSY.

CLEVIS - rod end

1шт.

9

700705922

ORIFICE

1шт.

10

H673838

SEAL

SEAL KIT

1шт.
