(8-18) - CYLINDER HYDRAULIC TILT ASSEMBLY, 3 INCH BORE X 16 INCH STROKE, SERIAL NUMBER CFH0036202 AND LATER

Запчасти Case IH 8610 (8-18) - CYLINDER HYDRAULIC TILT ASSEMBLY, 3 INCH BORE X 16 INCH STROKE, SERIAL NUMBER CFH0036202 AND LATER (35) - HYDRAULIC SYSTEMS

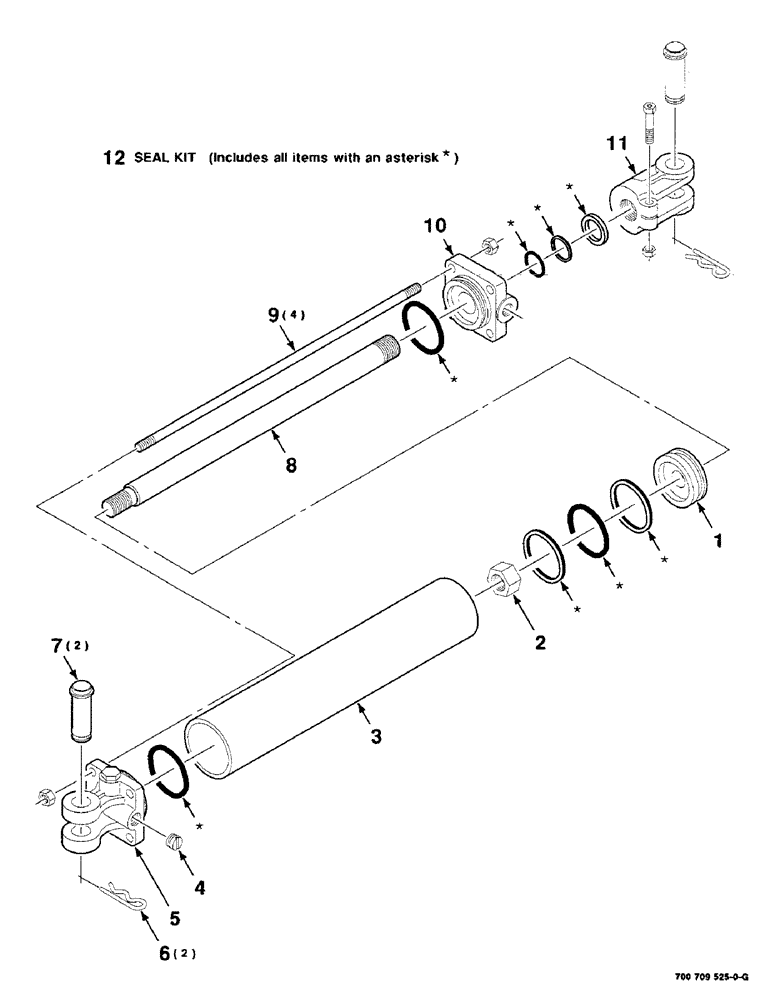

Схема запчастей Case IH 8610 - (8-18) - CYLINDER HYDRAULIC TILT ASSEMBLY, 3 INCH BORE X 16 INCH STROKE, SERIAL NUMBER CFH0036202 AND LATER (35) - HYDRAULIC SYSTEMS
3
9
1
7
2
10
11
6
12
4
5
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700709525

CYLINDER,Double Acting, 31.75mm Rod, 406.4mm Stroke

- hydraulic assembly complete (3 inch bore x 16 inch stroke)

1шт.

1

B17274

PISTON

1шт.

2

131-909

LOCK NUT,3/4"-16

NUT - piston

1шт.

3

700709538

TUBE

BARREL

1шт.

4

700708462

ORIFICE

1шт.

5

700709534

BASE

- clevis

1шт.

6

S120261

PIN

.149 X 2-3/4 HAIRPIN COTTER

2шт.

7

811134C1

PIN

- clevis

2шт.

8

700709537

ROD

1шт.

9

700709536

ROD

TIE ROD

4шт.

10

812166C2

END

HEAD

1шт.

11

T55022

CLEVIS

- rod

1шт.

12

B17231

KIT

SEAL KIT

1шт.
