(8-12) - MOTOR HYDRAULIC CONTAINER DRIVE, SERIAL NUMBER CFH0036001 THRU CFH0036324

Запчасти Case IH 8610 (8-12) - MOTOR HYDRAULIC CONTAINER DRIVE, SERIAL NUMBER CFH0036001 THRU CFH0036324 (35) - HYDRAULIC SYSTEMS

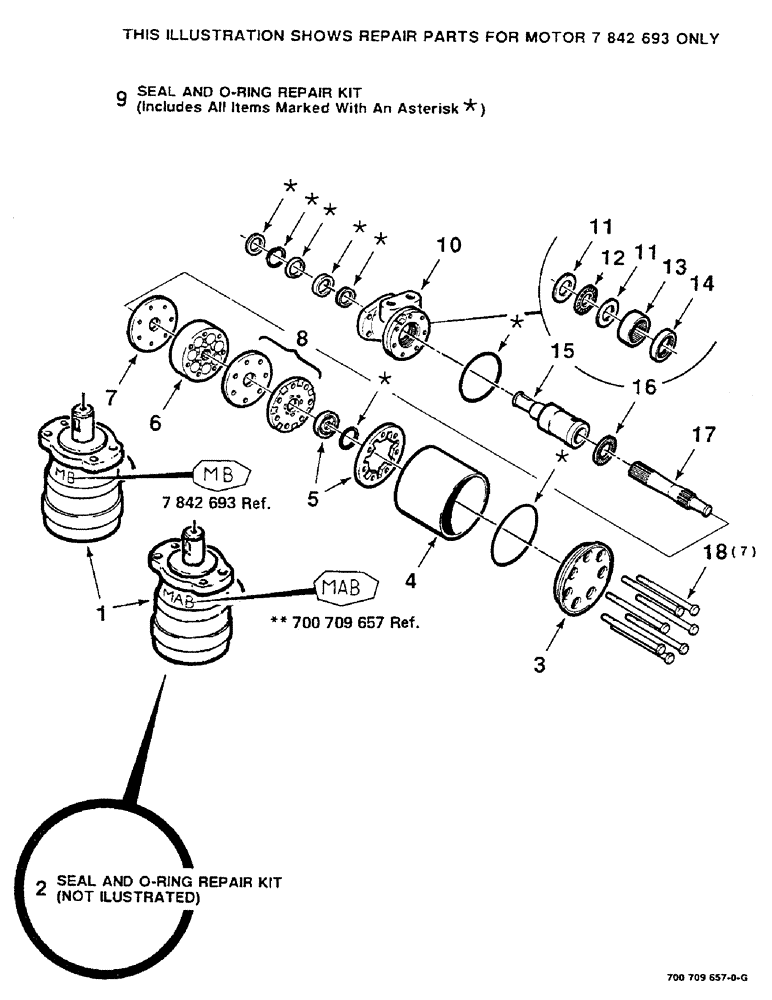

Схема запчастей Case IH 8610 - (8-12) - MOTOR HYDRAULIC CONTAINER DRIVE, SERIAL NUMBER CFH0036001 THRU CFH0036324 (35) - HYDRAULIC SYSTEMS
11
7
17
18
5
9
2
13
4
3
12
16
14
6
15
10
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

7842693

MOTOR, HYDRAULIC

MOTOR - hydraulic, complete

1шт.

700709657

MOTOR

- hydraulic, complete

1шт.

2

1980156C1

SEAL KIT

SEAL AND O-RING REPAIR KIT

1шт.

3

N9527

COVER

ASSEMBLY - end

1шт.

4

7034077

PROTECTOR

SLEEVE - protector

1шт.

5

D60857

COMMUTATOR

AND RING KIT

1шт.

6

7033988

ROTOR ASSY.

ROTOR ASSEMBLY

1шт.

7

N9504

PLATE ASSY.

PLATE - wear

1шт.

8

D71235

MANIFOLD

KIT - manifold

1шт.

9

174397C2

SEAL KIT

SEAL AND O-RING REPAIR KIT

1шт.

10

D59696

COVER

HOUSING ASSEMBLY

1шт.

11

D60861

WASHER

- thrust

2шт.

12

D60860

THRUST BEARING,1.366" ID x 2.24" OD x 0.125"

BEARING - thrust

1шт.

13

7033962

NEEDLE BEARING

BEARING - needle

1шт.

14

362251R91

BEARING, NEEDLE,Needle, 47.62mm ID x 57.15mm OD x 12.57mm W

BEARING - needle

1шт.

15

7035074

COUPLING

SHAFT - coupling

1шт.

16

6144489

KIT

- thrust bearing

1шт.

17

7033970

DRIVE SHAFT

LINK - drive

1шт.

18

7034002

BOLT

- special

7шт.
