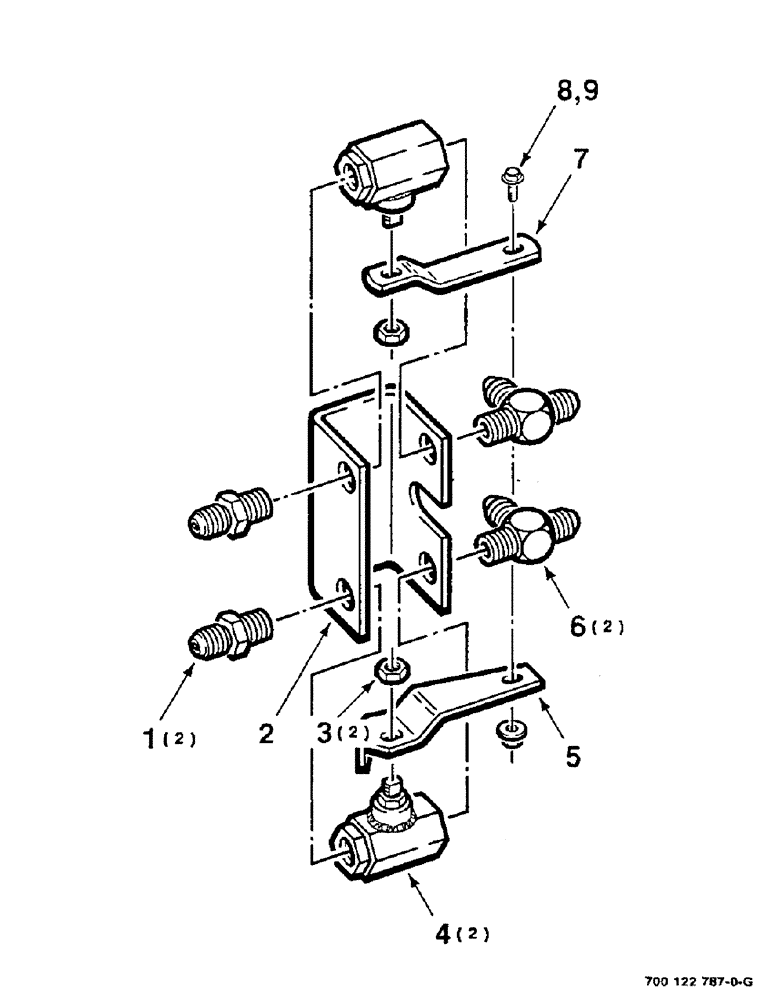

Запчасти Case IH 8610 (8-10) - VALVE LOCKOUT ASSEMBLY , SERIAL NUMBER CFH0036502 AND LATER (35) - HYDRAULIC SYSTEMS

1

218-1024

HYD CONNECTOR,9/16"-18, 37 Degree x 3/8"-18, NPTF

CONNECTOR, HYD., 9/16"-18, 37° x 3/8"-18, NPTF

2шт.

2

700122789

CHANNEL

1шт.

3

425-156

JAM NUT,Jam, 3/8"-24, G5

2шт.

4

700710507

VALVE

- bail

2шт.

5

700122805

HANDLE

- lower

1шт.

6

218-626

TEE,9/16"-18, 37º x 3/8"-18, NPTF Run

- male run

2шт.

7

700122803

HANDLE

- upper

1шт.

8

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

1/4-20 X 3/4 HWHMS

1шт.

9

1703354

NUT

1/4-20 HFTLN GR/G

1шт.
