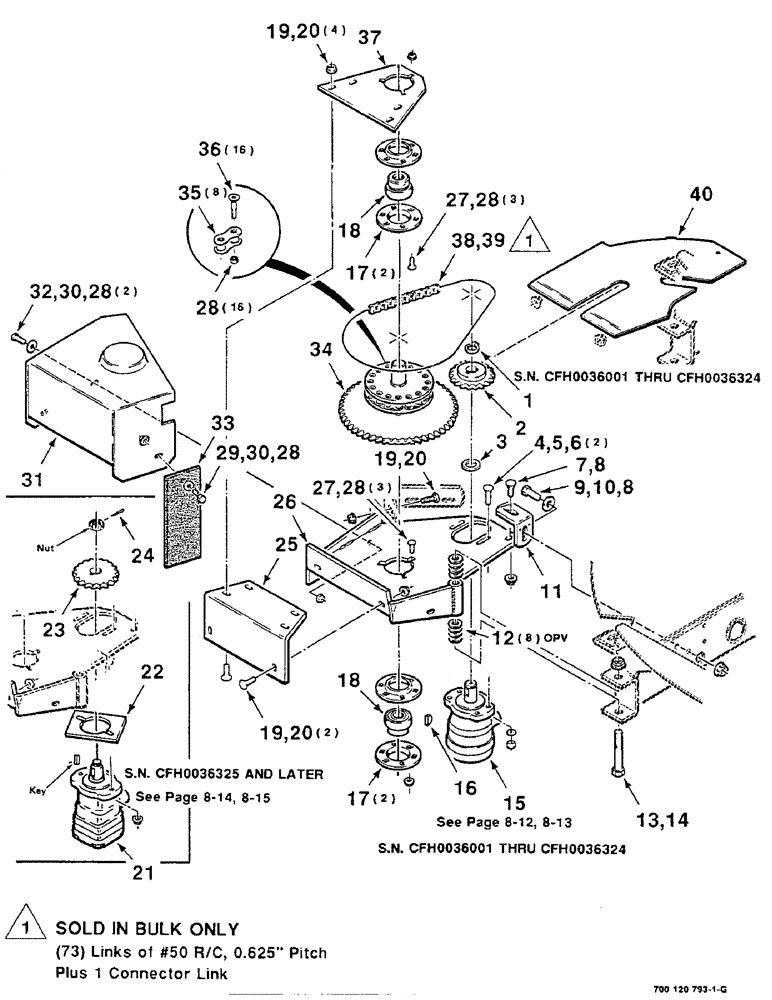

Запчасти Case IH 8610 (8-06) - HYDRAULIC CONTAINER DRIVE ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

100-11100

SNAP RING,#100, Ext

Ring, Snap, #100, Ext

1шт.

2

700704663

SPROCKET ASSY.

SPROCKET - 50P, 20 tooth

1шт.

3

52258

BUSHING

1 X 14 GAUGE NRMB

1шт.

4

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

1/2-13 X 1-3/4 RHSNB

2шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

6

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

7

7870132

BOLT,Sq Nk, 5/8" - 11 x 1 1/4", Gr 5

5/8-11 X 1-1/4 RHSNB

1шт.

8

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

2шт.

9

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

1шт.

10

495-11066

WASHER,5/8", SAE

5/8 NARROW PLAIN WASHER

1шт.

11

700110507

ANGLE

1шт.

12

95-81182

WASHER,0.81" ID x 1.25" OD x 0.07" Thk

3/4 X 14 GAUGE NRMB

8шт.

13

413-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

.75 X 5.5 UNC GR5 YZD

1шт.

14

232-53112

FLANGE NUT,Flg, 3/4"-10

3/4-10 HFTLN GR/G

1шт.

15

7842693

MOTOR, HYDRAULIC

MOTOR - hydraulic

1шт.

700709657

MOTOR

- hydraulic

1шт.

16

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

17

825620C1

RETAINER

- bearing

4шт.

18

700708091

SPHERICAL BEARING,34.93 mm ID x 72 mm OD x 38.89 mm

BEARING - spherical

2шт.

19

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 RHSNB

7шт.

20

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

7шт.

21

700709475

MOTOR

- hydraulic

1шт.

22

700121511

SHIM

1шт.

23

700120727

SPROCKET ASSY.

SPROCKET - 50P, 21 tooth

1шт.

24

432-624

COTTER PIN,3/32" x 1 1/2"

3/32" x 1 1/2"

1шт.

25

700117339

CAP

1шт.

26

700117335

SUPPORT

MOUNT - motor

1шт.

27

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

6шт.

28

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

25шт.

29

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

30

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

3шт.

31

700117340

SHIELD

- drive

1шт.

32

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

33

700118625

STRAP

- indicator

1шт.

34

700108883

SPROCKET ASSY.

SPROCKET AND DRIVE HUB

1шт.

35

700704331

LINK

- roller, 100 R/C, 1" pitch

8шт.

36

700704513

HEX SOC SCREW,Flat Hd, 3/8"-16 x 1 7/8"

3/8-16 X 1 HSFCHCS

16шт.

37

700109889

SUPPORT

CAP

1шт.

38

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

CHAIN - roller, #50 (10 foot bulk)

1шт.

39

47530

LINK, CONNECTING

LINK - connector, 50 R/C

1шт.

40

700117342

SHIELD

- drive

1шт.
