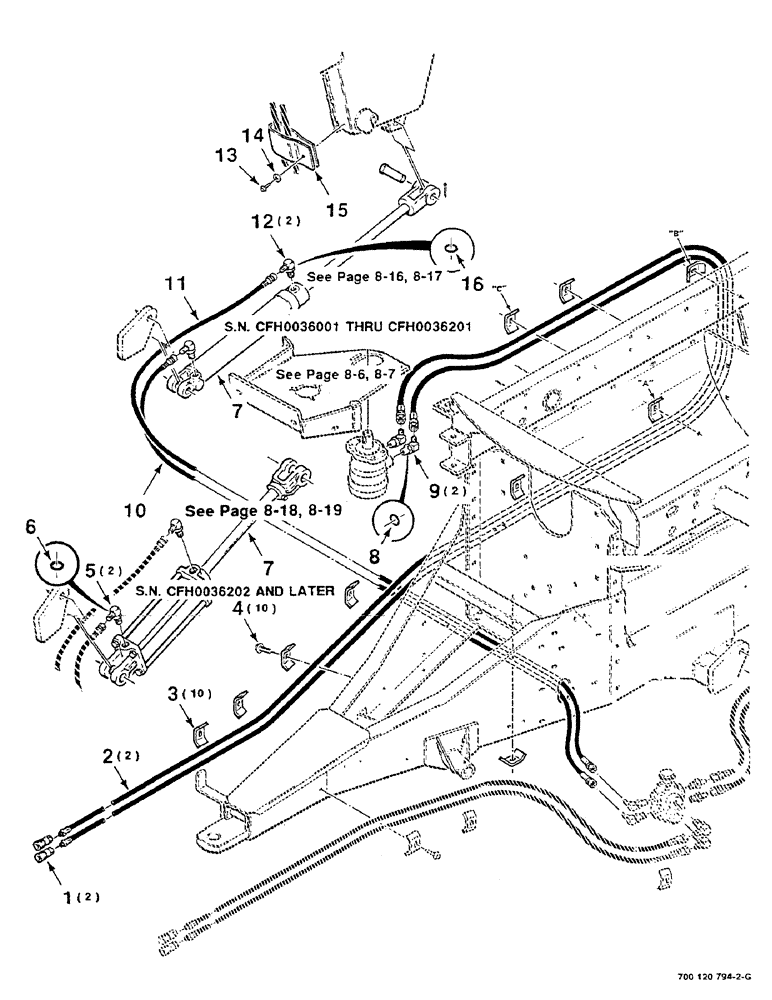

Запчасти Case IH 8610 (8-04) - HYDRAULIC ASSEMBLY, RIGHT (35) - HYDRAULIC SYSTEMS

1

1-7141

FITTING

COUPLER - quick disconnect

2шт.

2

700707875

HOSE

- hydraulic

2шт.

3

700126495

CLAMP

- line

10шт.

4

73528

SELF-TAP SCREW

3/8-16 X 1-1/2 HWHTCTS

10шт.

5

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

(Incl. item 6) 90º, 9/16"-18, 37º x 3/4"-16, O-Ring

2шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

7

700704318

CYLINDER

- hydraulic (Includes pins) (S.N. CFH0036001 thru CFH0036201)

1шт.

700709525

CYLINDER,Double Acting, 31.75mm Rod, 406.4mm Stroke

- hydraulic (Includes pins) (S.N. CFH0036202 and later)

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

9

218-5146

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

45 DEGREE ELBOW (Includes item 8)

2шт.

10

7872765

HOSE

- hydraulic

1шт.

11

700707879

HOSE

- hydraulic

1шт.

12

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

(Includes item 16) 90º, 9/16"-18, 37º x 9/16"-18, O-Ring

2шт.

13

7702012

SELF-TAP SCREW,3/8" - 16 x 1"

3/8-16 X 1 HWHTCTS

1шт.

14

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

1шт.

15

700117995

SUPPORT

- hose, hydraulic

1шт.

16

738468

O-RING

1шт.
