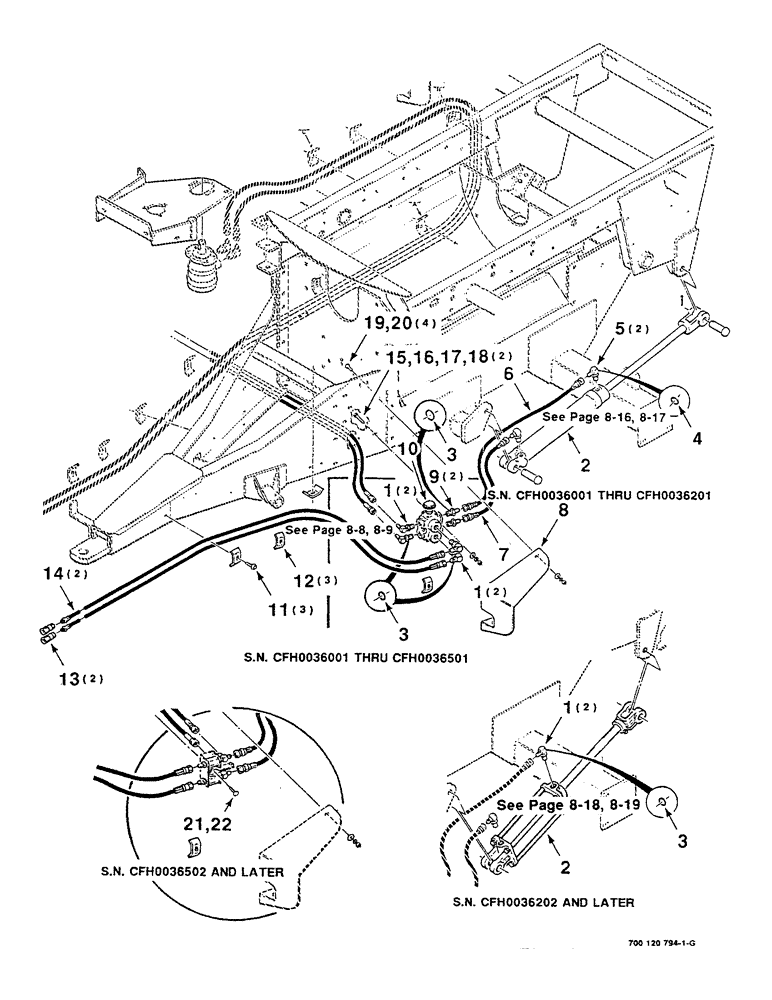

Запчасти Case IH 8610 (8-02) - HYDRAULIC ASSEMBLY, LEFT (35) - HYDRAULIC SYSTEMS

1

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

(Incl. item 3) 90º, 9/16"-18, 37º x 3/4"-16, O-Ring

6шт.

2

700704318

CYLINDER

- hydraulic (Includes pins) (S.N. CFH0036001 thru CFH0036201)

1шт.

700709525

CYLINDER,Double Acting, 31.75mm Rod, 406.4mm Stroke

- hydraulic (Includes pins) (S.N. CFH0036202 and later)

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

3шт.

4

738468

O-RING

1шт.

5

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

(Includes item 4) 90º, 9/16"-18, 37º x 9/16"-18, O-Ring

2шт.

6

7872765

HOSE

- hydraulic

1шт.

7

7872542

HOSE

- hydraulic

1шт.

8

700117379

SHIELD

- valve

1шт.

9

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

CONNECTOR (Includes item 3)

2шт.

10

700704757

VALVE

- flow control

1шт.

11

73528

SELF-TAP SCREW

3/8-16 X 1-1/2 HWHTCTS

3шт.

12

700126495

CLAMP

- line

3шт.

13

1-7141

FITTING

COUPLER - quick disconnect

2шт.

14

700707874

HOSE

- hydraulic

2шт.

15

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

16

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

17

492-11038

LOCK WASHER,3/8"

2шт.

18

425-106

NUT,3/8"-16, Cl 5

2шт.

19

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

4шт.

20

231-5146

FLANGE NUT,3/8"-16

4шт.

21

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

1шт.

22

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

1шт.
