(2-14) - CLUTCH FRICTION ASSEMBLY, 700707933 CLUTCH FRICTION ASSEMBLY COMPLETE

Запчасти Case IH 8610 (2-14) - CLUTCH FRICTION ASSEMBLY, 700707933 CLUTCH FRICTION ASSEMBLY COMPLETE (31) - IMPLEMENT POWER TAKE OFF

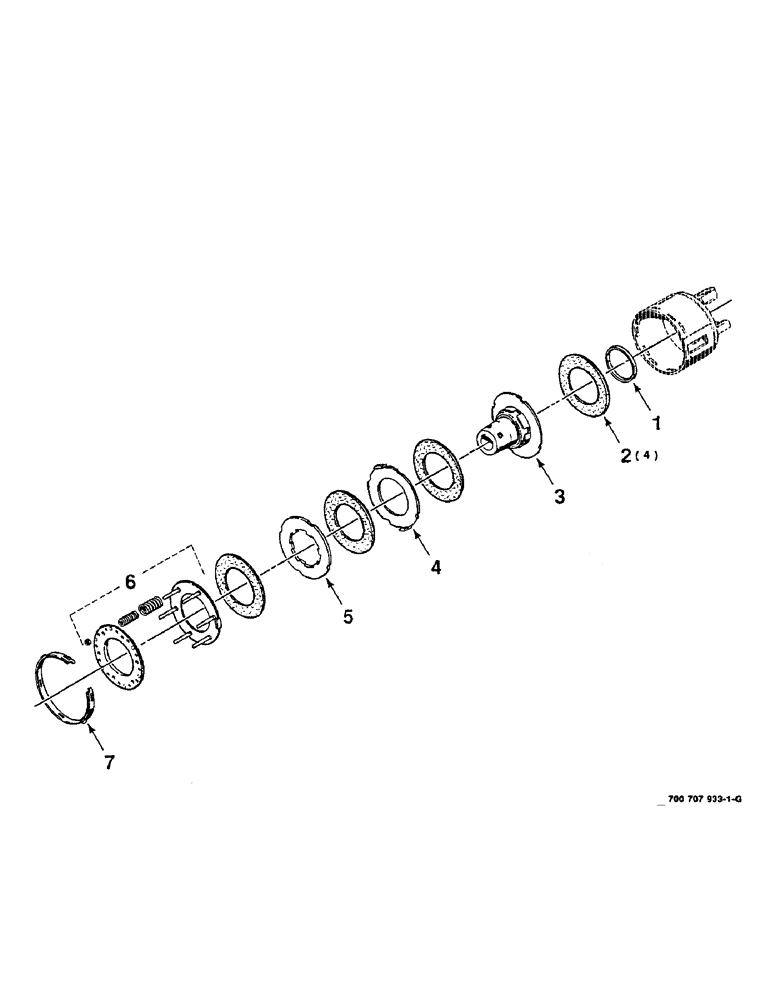

Схема запчастей Case IH 8610 - (2-14) - CLUTCH FRICTION ASSEMBLY, 700707933 CLUTCH FRICTION ASSEMBLY COMPLETE (31) - IMPLEMENT POWER TAKE OFF
6
1
3
7
2
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700707933

CLUTCH

- friction assembly complete

1шт.

1

700707941

RING

1шт.

2

700707942

DISC

- friction

4шт.

3

700707948

PLATE

HUB AND DRIVE PLATE

1шт.

4

700707945

PLATE

- drive, inner

1шт.

5

700707944

PLATE

- drive, outer

1шт.

6

700707946

SPRING

- pack

1шт.

7

700707947

RING

- setting

1шт.
