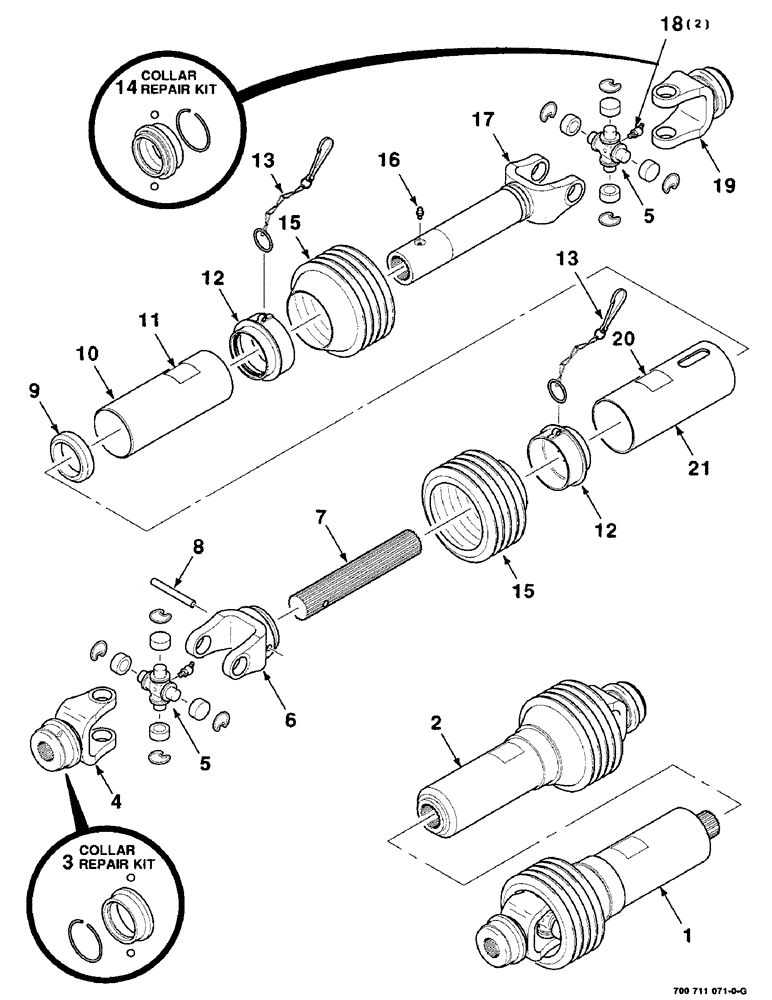

Запчасти Case IH 8610 (2-10) - IMPLEMENT DRIVELINE ASSEMBLY, WALTERSCHEID, SERIAL NUMBER CFH0096512 AND LATER (31) - IMPLEMENT POWER TAKE OFF

1

700711375

COUPLING

TRACTOR - half, male

1шт.

2

700711376

COUPLING

IMPLEMENT - half, female

1шт.

3

700711386

COLLAR

REPAIR KIT

1шт.

4

700707939

YOKE

1-3/8-21 SPLINED YOKE ASSEMBLY (Quick disconnect)

1шт.

5

700706779

SPIDER ASSY.

CROSS AND BEARING KIT (Includes item 18)

2шт.

6

700711388

YOKE

- inboard

1шт.

7

700711389

PROFILE

SHAFT - inner profile

1шт.

8

838-31090

PIN,10mm OD x 90mm L, Coiled

SLOTTED SPRING PIN

1шт.

9

700706769

SUPPORT

BEARING - support

1шт.

10

700711392

TUBE

SHIELD - inner, tube

1шт.

11

1326528C1

DECAL

SAFETY DECAL - inner

1шт.

12

8800633

BEARING COVER

RING

2шт.

13

700713239

CHAIN (AG)

CHAIN - safety

2шт.

14

700711387

KIT

COLLAR REPAIR KIT

1шт.

15

700711402

SHIELD

OUTER - shield

2шт.

16

219-425

LUBE NIPPLE,1/4" - 28

ZERK - straight

1шт.

17

700711385

SLEEVE

YOKE - inboard, tube & sleeve

1шт.

18

700713986

LUBE NIPPLE,67.5 Degree, M8

M8 X 67 1/2 DEGREE ZERK

2шт.

19

700709178

BODY

1-3/4-20 SPLINED YOKE ASSEMBLY (Quick disconnect)

1шт.

20

80672C1

DECAL

SAFETY DECAL - outer

1шт.

21

700711391

SHIELD

- tube, outer

1шт.
