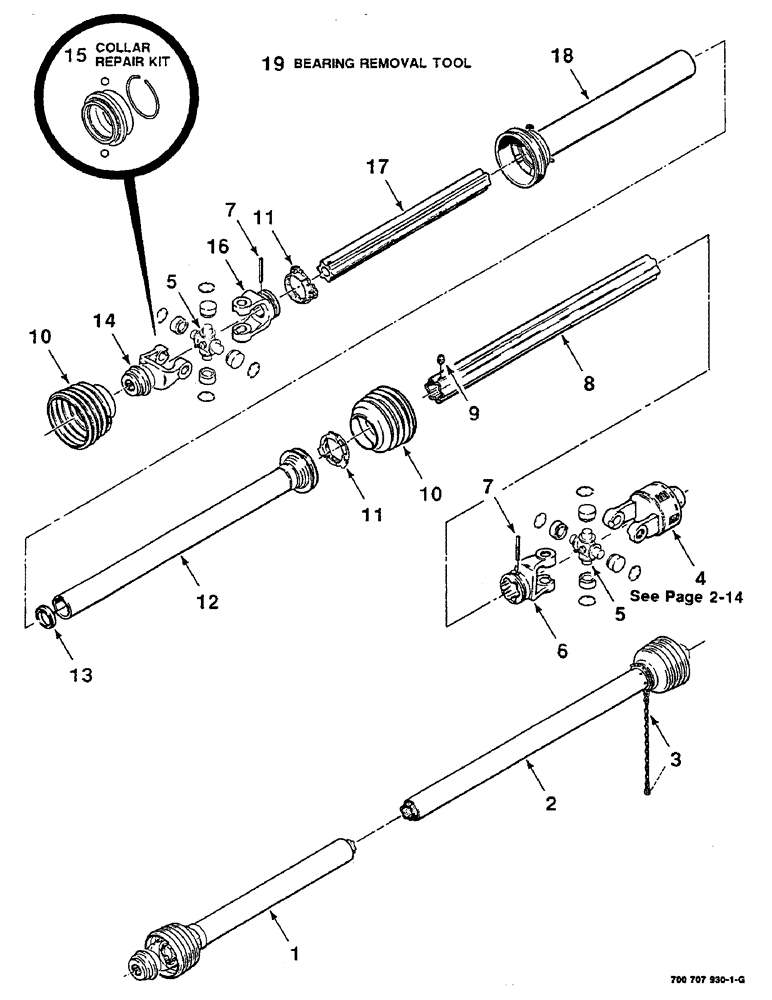

Запчасти Case IH 8610 (2-08) - DRIVELINE ASSEMBLY, IMPLEMENT, SERIAL NUMBER CFH0036001 THRU CFH0096511 (31) - IMPLEMENT POWER TAKE OFF

1

700707931

UNIVERSAL JOINT

U-JOINT - tractor half (1-3/8-21 spline)

1шт.

2

700707932

UNIVERSAL JOINT

U-JOINT - implement half, includes ref. 4

1шт.

3

1281453C1

CHAIN (AG)

CHAIN - safety

1шт.

4

700707933

CLUTCH

ASSEMBLY WITH YOKE

1шт.

5

700706779

SPIDER ASSY.

JOURNAL REPAIR KIT

2шт.

6

700706774

YOKE

- inboard

1шт.

7

838-31090

PIN,10mm OD x 90mm L, Coiled

- shield

2шт.

8

700707938

PROFILE

TUBE - outer profile

1шт.

9

700707556

NIPPLE, LUBE

ZERK

1шт.

10

700706773

SHIELD

CONE - shield

2шт.

11

8800633

BEARING COVER

RING - bearing

2шт.

12

700707934

SHIELD

- tube, inner

1шт.

13

700706769

SUPPORT

- bearing

1шт.

14

700707939

YOKE

ASSEMBLY - tractor (1-3/8-21 spline)

1шт.

700709178

BODY

YOKE ASSEMBLY - tractor (1-3/4-20 spline)

1шт.

15

700711386

COLLAR

REPAIR KIT

1шт.

16

700706777

YOKE

- inboard

1шт.

17

700707937

PROFILE

SHAFT - inner profile

1шт.

18

700707936

SHIELD

- tube, outer

1шт.

19

700706833

TOOL

- bearing removal

1шт.
