(6-08) - CROP RETAINER ASSEMBLY, SERIAL NUMBER CFH0052314 AND LATER

Запчасти Case IH 8480 (6-08) - CROP RETAINER ASSEMBLY, SERIAL NUMBER CFH0052314 AND LATER (14) - BALE CHAMBER

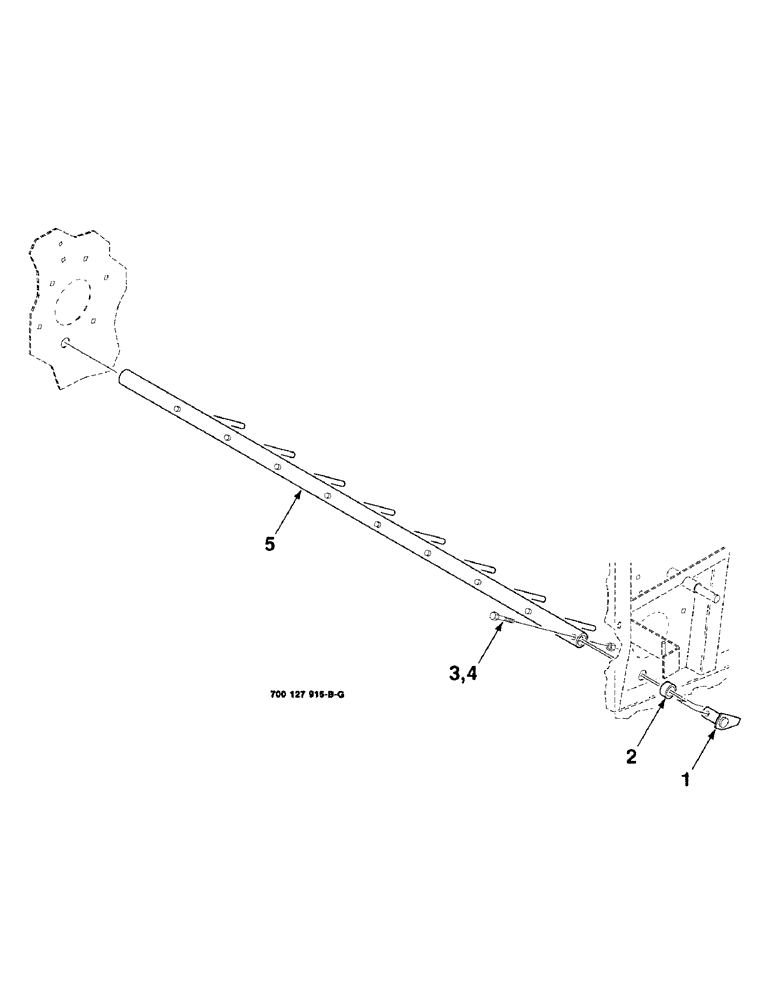

Схема запчастей Case IH 8480 - (6-08) - CROP RETAINER ASSEMBLY, SERIAL NUMBER CFH0052314 AND LATER (14) - BALE CHAMBER
5
4
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700120879

STOP

1шт.

2

419291

SPACER

1шт.

3

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

1шт.

4

230-4118

LOCK NUT,1/2"-13, GA

1/2-13 HTLN GR/B

1шт.

5

700120876

RETAINER

CROP - retainer

1шт.
