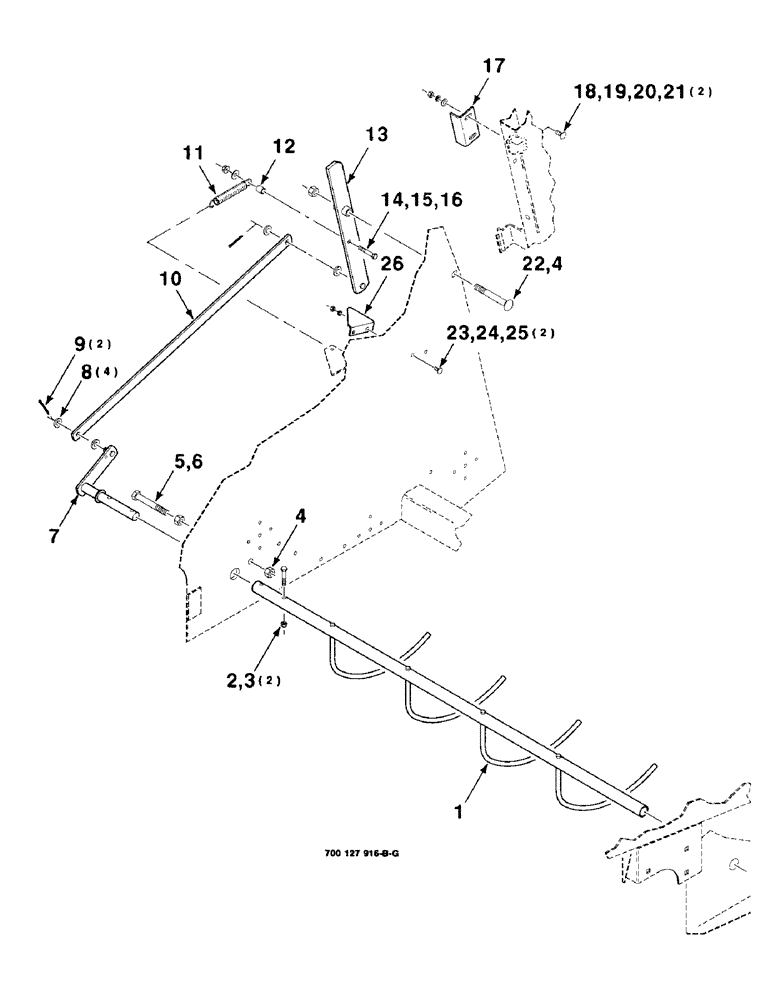

Запчасти Case IH 8480 (6-06) - TRIPGATE ASSEMBLY, SERIAL NUMBER CFH0052314 AND LATER (14) - BALE CHAMBER

1

700120885

GUIDE

TRIPGATE

1шт.

2

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

3

231-4116

NUT,3/8"-16, GB

3/8-16 HTLN GR/B

2шт.

4

230-42110

LOCK NUT,5/8"-11, GA

5/8-11 HCLN GR/B

2шт.

5

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

1шт.

6

425-1010

NUT,5/8"-11, G5

1шт.

7

700120892

CRANK

ARM

1шт.

8

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

4шт.

9

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.

10

700120888

LINK

1шт.

11

700710130

SPRING

- extension

1шт.

12

6869242

TUBE,15.88 mm OD, 30 mm Length

1шт.

13

700120895

LEVER

ARM

1шт.

14

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

15

495-21044

WASHER,3/8"

1шт.

16

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

1шт.

17

700120890

ANGLE

1шт.

18

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

2шт.

19

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

20

492-11038

LOCK WASHER,3/8"

2шт.

21

425-106

NUT,3/8"-16, Cl 5

2шт.

22

433-1080

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 5", Gr 5

5/8-11 X 5 RHSNB

1шт.

23

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

24

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

25

425-105

NUT,5/16"-18, G5

2шт.

26

700120891

STOP

1шт.
