(6-02) - ROLLER SCRAPER AND BELT GUIDE ASSEMBLIES

Запчасти Case IH 8480 (6-02) - ROLLER SCRAPER AND BELT GUIDE ASSEMBLIES (14) - BALE CHAMBER

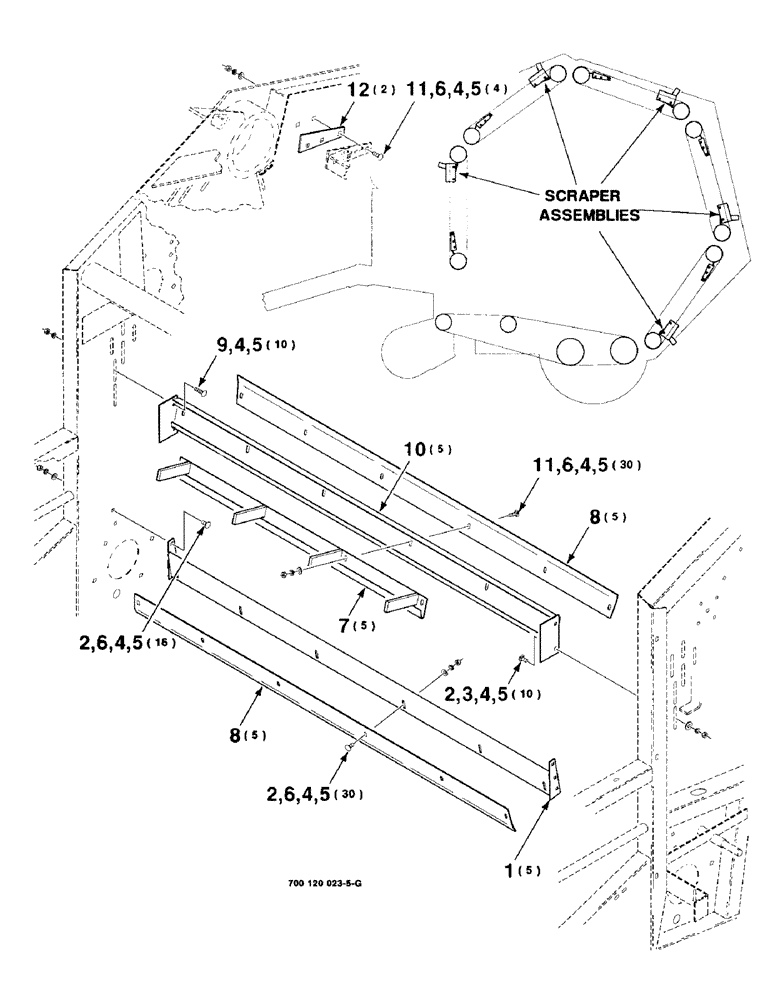

Схема запчастей Case IH 8480 - (6-02) - ROLLER SCRAPER AND BELT GUIDE ASSEMBLIES (14) - BALE CHAMBER
11
11
6
8
5
6
5
2
4
5
6
10
5
4
4
4
6
1
2
3
2
9
5
5
4
8
7
4
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700120189

SUPPORT

- scraper

5шт.

2

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

56шт.

3

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16 WIDE PLAIN WASHER

10шт.

4

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

100шт.

5

425-105

NUT,5/16"-18, G5

100шт.

6

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

80шт.

7

700120195

GUIDE

5шт.

8

700120187

SCRAPER

10шт.

9

433-520

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

5/16-18 X 1-1/4 RHSNB

10шт.

10

700120190

SUPPORT

- scraper

5шт.

11

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G5

34шт.

12

700120193

PLATE

2шт.
