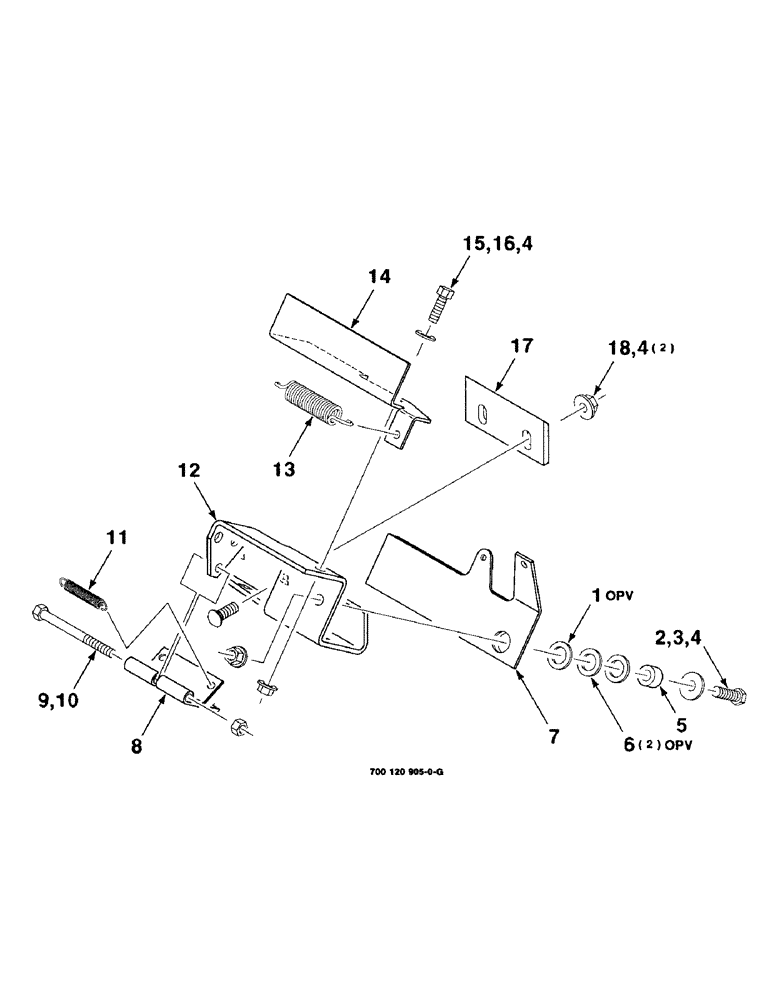

Запчасти Case IH 8480 (7-20) - CUTOFF ASSEMBLY, LEFT (12) - MAIN FRAME

1

95-81182

WASHER,0.81" ID x 1.25" OD x 0.07" Thk

3/4 X 14 GAUGE NRMB

1шт.

2

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

3

495-21044

WASHER,3/8"

1шт.

4

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

4шт.

5

700120308

SPACER

1шт.

6

52183

BUSHING

3/4 X 18 GAUGE NRMB

2шт.

7

700120309

ARM

- jam, left

1шт.

8

700120325

CLAMP

- twine

1шт.

9

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

5/16-18 X 3-1/2 C

1шт.

10

230-4115

LOCK NUT,5/16"-18, GA

5/16-18 HTLN GR/B

1шт.

11

700709635

SPRING

- extension

1шт.

12

700120315

SUPPORT

- left

1шт.

13

700709637

SPRING

- extension

1шт.

14

700120317

TRIGGER

- left

1шт.

15

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

16

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

1шт.

17

700709554

KNIFE

- twine

1шт.

18

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

2шт.
