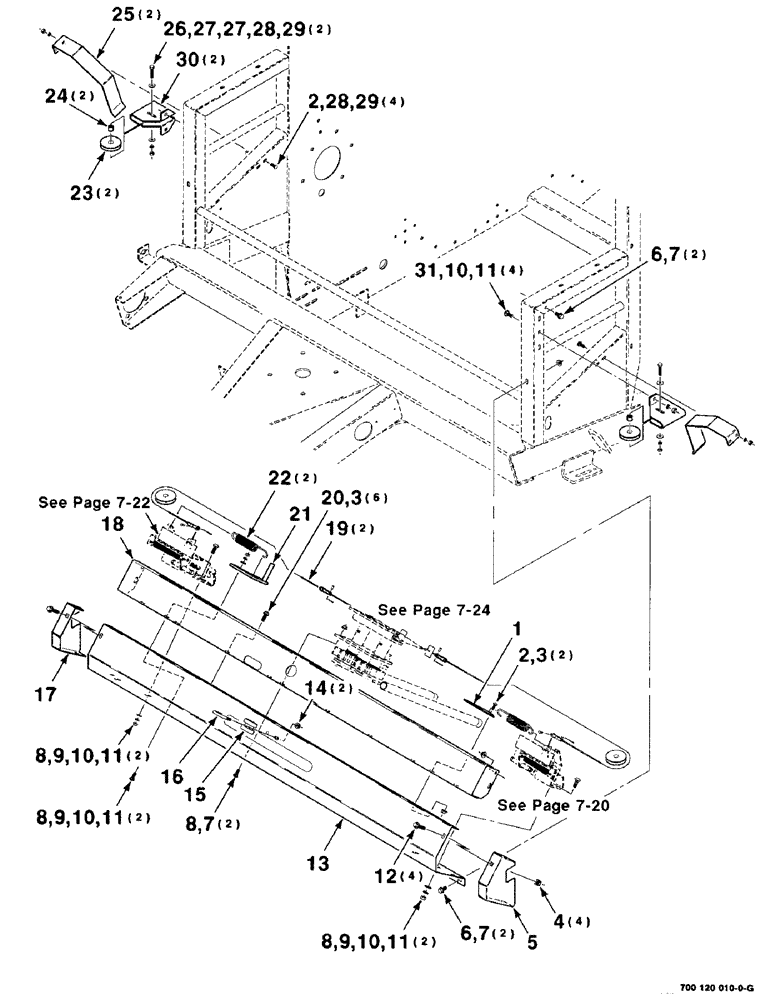

Запчасти Case IH 8480 (7-18) - THREADER ASSEMBLY (12) - MAIN FRAME

1

700120275

PLATE

1шт.

2

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

6шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

8шт.

4

774224

NUT

5/16-18 NUT - tinnerman

4шт.

5

700120320

SHIELD

- end, left

1шт.

6

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

4шт.

7

231-5146

FLANGE NUT,3/8"-16

6шт.

8

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

8шт.

9

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

6шт.

10

492-11038

LOCK WASHER,3/8"

10шт.

11

425-106

NUT,3/8"-16, Cl 5

10шт.

12

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Hex Flg, 5/16-18 x 3/4", Serr

4шт.

13

700120340

SHIELD

1шт.

14

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

2шт.

15

7745003

GUIDE

- twine

1шт.

16

51200861

U-BOLT

1шт.

17

700120321

SHIELD

- end, right

1шт.

18

700120322

SUPPORT

- cutoff

1шт.

19

700709517

CABLE

ASSEMBLY (Includes pins)

2шт.

20

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

6шт.

21

700120272

PLATE

- pivot

1шт.

22

700709636

SPRING

2шт.

23

700120328

PULLEY

2шт.

24

700119414

SPACER

2шт.

25

700120098

GUIDE

- twine

2шт.

26

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

27

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

4шт.

28

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

29

425-105

NUT,5/16"-18, G5

6шт.

30

700120319

SUPPORT

- pulley

2шт.

31

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

4шт.
