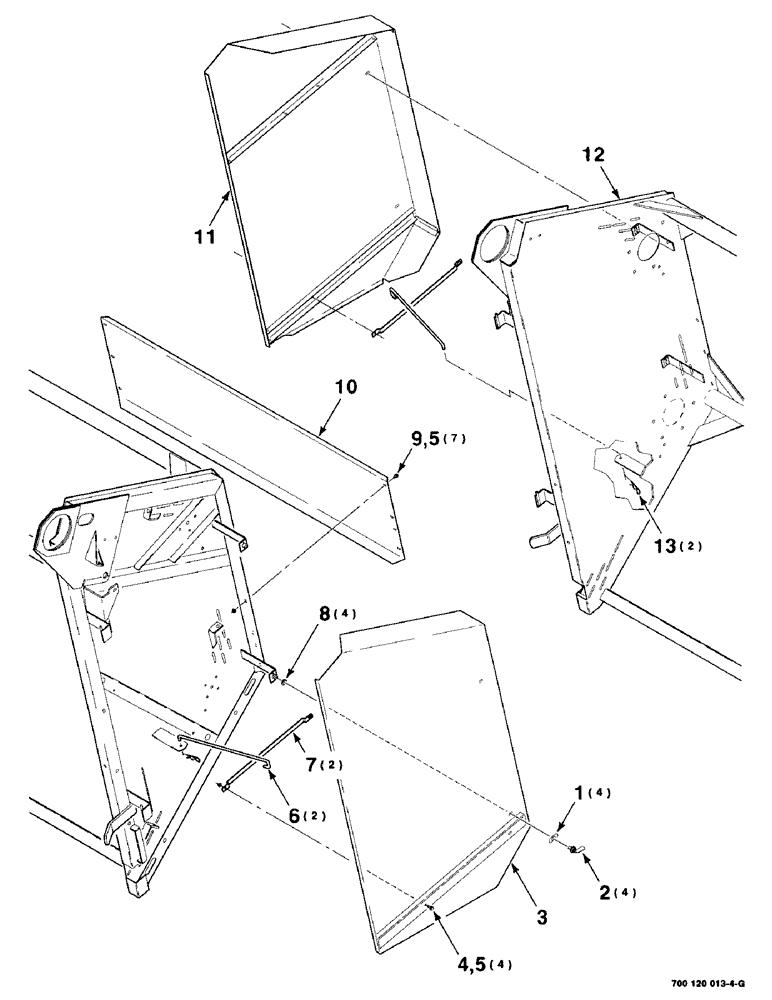

Запчасти Case IH 8480 (7-16) - TAILGATE AND SHIELD ASSEMBLIES (12) - MAIN FRAME

1

700711698

DECAL

- slot, camloc

4шт.

2

7895469

STUD

OFFSET WING HEAD STUD

4шт.

3

700120356

SHIELD

- tailgate, left

1шт.

4

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

4шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

11шт.

6

700120347

ROD

SUPPORT - rod

2шт.

7

700126724

GUIDE

2шт.

8

794339

SPRING WASHER

- special

4шт.

9

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

7шт.

10

700120875

SUPPORT

- rear, smv

1шт.

11

700120357

SHIELD

- tailgate, right

1шт.

12

700120221

SUPPORT ASSY.

TAILGATE WA

1шт.

13

S120261

PIN

.148 WIRE HAIR PIN COTTER

2шт.
