Запчасти Case IH 8480 (7-14) - SIDE AND PICKUP SHIELD ASSEMBLIES, FRONT, RIGHT, SERIAL NUMBER CFH0051673 AND LATER (12) - MAIN FRAME

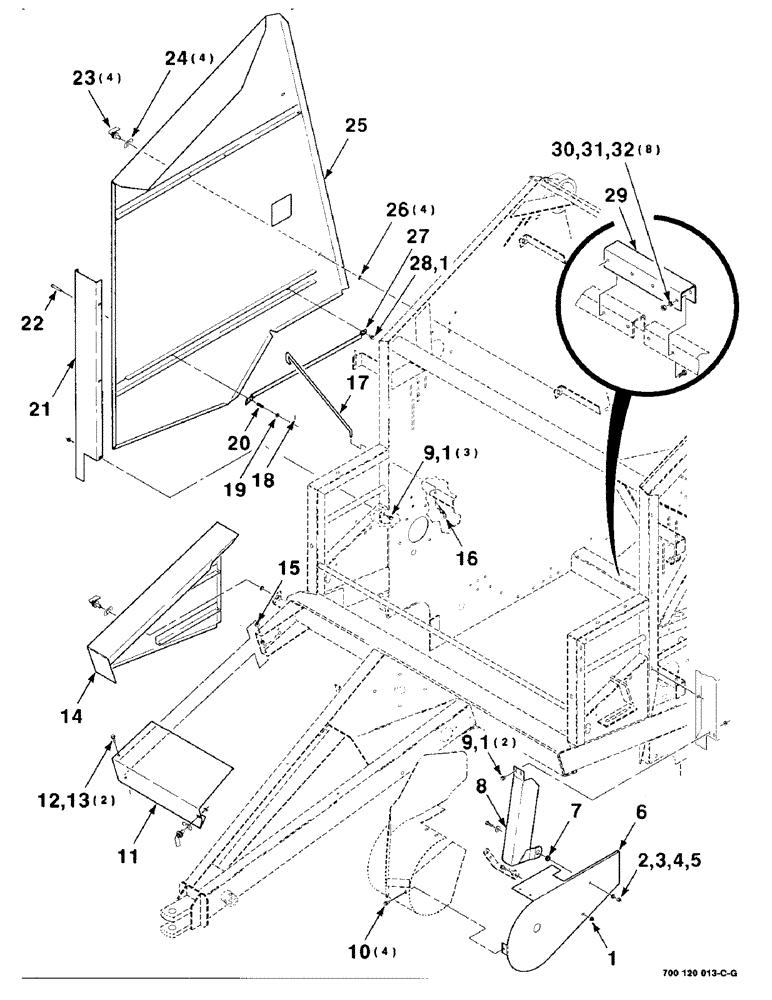

Схема запчастей Case IH 8480 - (7-14) - SIDE AND PICKUP SHIELD ASSEMBLIES, FRONT, RIGHT, SERIAL NUMBER CFH0051673 AND LATER (12) - MAIN FRAME
13
3
24
2
1
9
18
17
1
26
14
19
5
25
6
29
30
7
15
28
22
1
1
11
4
10
12
32
20
23
27
9
8
21
16
31

Артикул

Название

Примечание

Количество

1

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

7шт.

2

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

3

495-21044

WASHER,3/8"

1шт.

4

492-11038

LOCK WASHER,3/8"

1шт.

5

425-106

NUT,3/8"-16, Cl 5

1шт.

6

700126745

SHIELD

- pickup

1шт.

7

700116106

SPACER

1шт.

8

700126747

SHIELD

WA

1шт.

9

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

5шт.

10

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Hex Flg, 5/16-18 x 3/4", Serr

4шт.

11

700120363

SHIELD

- primary drive

1шт.

12

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

2шт.

13

231-4115

NUT,5/16"-18, GB

NUT, LOCK, 5/16"-18, GB

2шт.

14

700120368

SHIELD

- front, right

1шт.

15

272294

SLEEVE

1шт.

16

S120261

PIN

.148 WIRE HAIR PIN COTTER

1шт.

17

700117067

SUPPORT

- rod

1шт.

18

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

19

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

1шт.

20

754606

SPRING

- compression

1шт.

21

700120367

PANEL

- front, right

1шт.

22

439-5532

HEADED PIN,5/16" x 2"

5/16 X 2 CLEVIS PIN

1шт.

23

7895469

STUD

OFFSET WING HEAD STUD

4шт.

24

700711698

DECAL

- slot, camloc

4шт.

25

700120349

SHIELD

- front, right

1шт.

26

794339

SPRING WASHER

- special

4шт.

27

700126723

LATCH

- strap

1шт.

28

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

1шт.

29

700120041

CHANNEL

- axle splice

1шт.

30

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

8шт.

31

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

32

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

Выбрано товаров: 32
