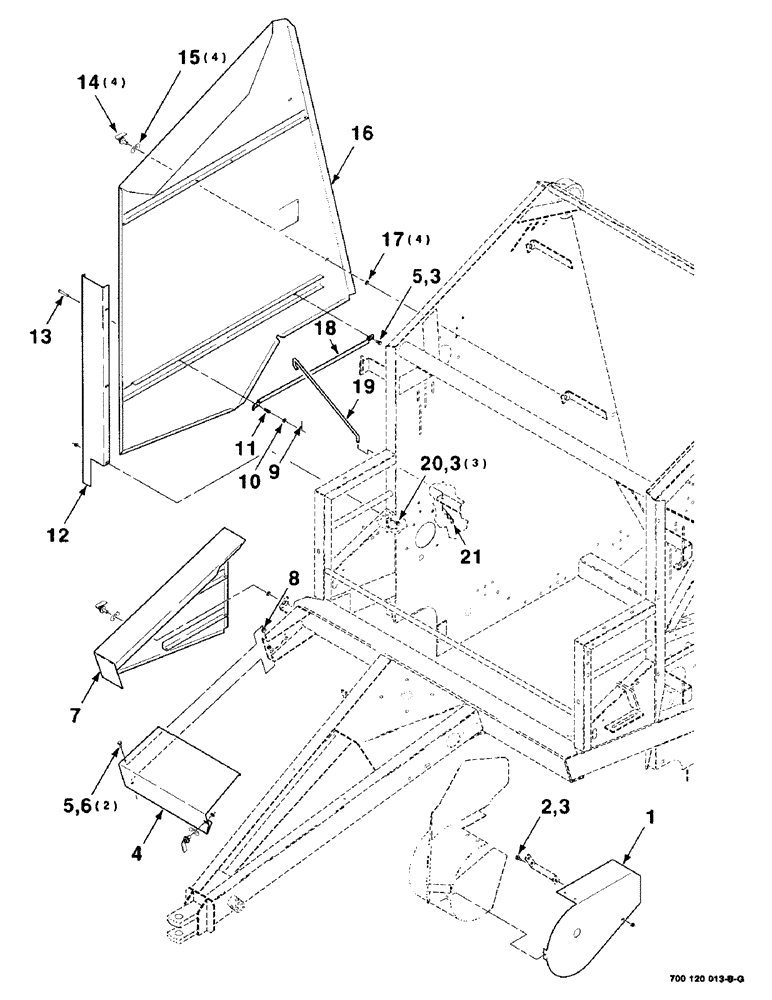

Запчасти Case IH 8480 (7-12) - SIDE AND PICKUP SHIELD ASSEMBLIES, FRONT, RIGHT, SERIAL NUMBER CFH0051001 THROUGH CFH0051672 (12) - MAIN FRAME

1

700122910

SHIELD

- pickup

1шт.

2

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Hex Flg, 5/16-18 x 3/4", Serr

1шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

5шт.

4

700120363

SHIELD

- primary drive

1шт.

5

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

3шт.

6

231-4116

NUT,3/8"-16, GB

3/8-16 HTLN GR/B

2шт.

7

700120368

SHIELD

- front, right

1шт.

8

51200188

SPACER

1шт.

9

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

10

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

1шт.

11

754606

SPRING

- compression

1шт.

12

700120367

PANEL

- front, right

1шт.

13

439-5532

HEADED PIN,5/16" x 2"

5/16 X 2 CLEVIS PIN

1шт.

14

7895469

STUD

OFFSET WING HEAD STUD

4шт.

15

700711698

DECAL

- slot, camloc

4шт.

16

700120349

SHIELD

- front, right

1шт.

17

794339

SPRING WASHER

- special

4шт.

18

700126723

LATCH

- strap

1шт.

19

700117067

SUPPORT

- rod

1шт.

20

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

3шт.

21

S120261

PIN

.148 WIRE HAIR PIN COTTER

1шт.
