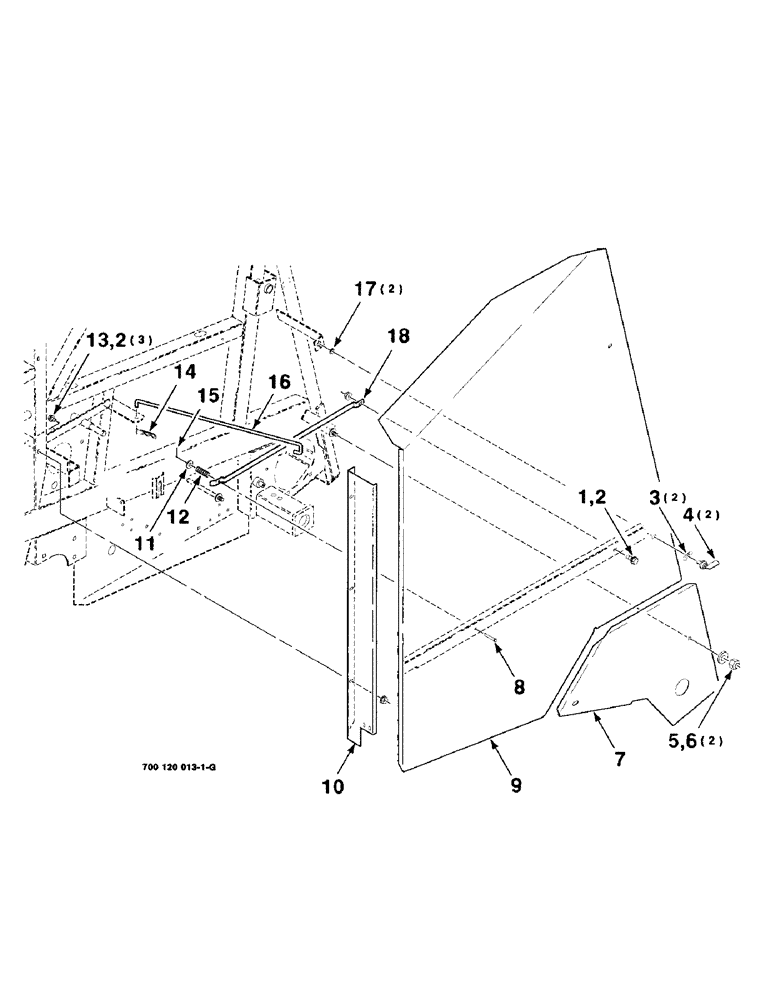

Запчасти Case IH 8480 (7-10) - SIDE AND PICKUP DRIVE SHIELD ASSEMBLIES, LEFT (12) - MAIN FRAME

1

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

1шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

4шт.

3

700711698

DECAL

- slot, camloc

2шт.

4

7895469

STUD

OFFSET WING HEAD STUD

2шт.

5

230-4218

LOCK NUT,1/2"-13, GA

1/2-13 HCLN GR/B

2шт.

6

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

2шт.

7

700120365

SHIELD

- pickup drive

1шт.

8

439-5532

HEADED PIN,5/16" x 2"

5/16 X 2 CLEVIS PIN

1шт.

9

700120348

SHIELD

- front, left

1шт.

10

700120366

PANEL

- front, left

1шт.

11

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

1шт.

12

754606

SPRING

- compression

1шт.

13

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

3шт.

14

S120261

PIN

.148 WIRE HAIR PIN COTTER

1шт.

15

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

16

700117067

SUPPORT

- rod

1шт.

17

794339

SPRING WASHER

- special

2шт.

18

700126723

LATCH

- strap

1шт.
