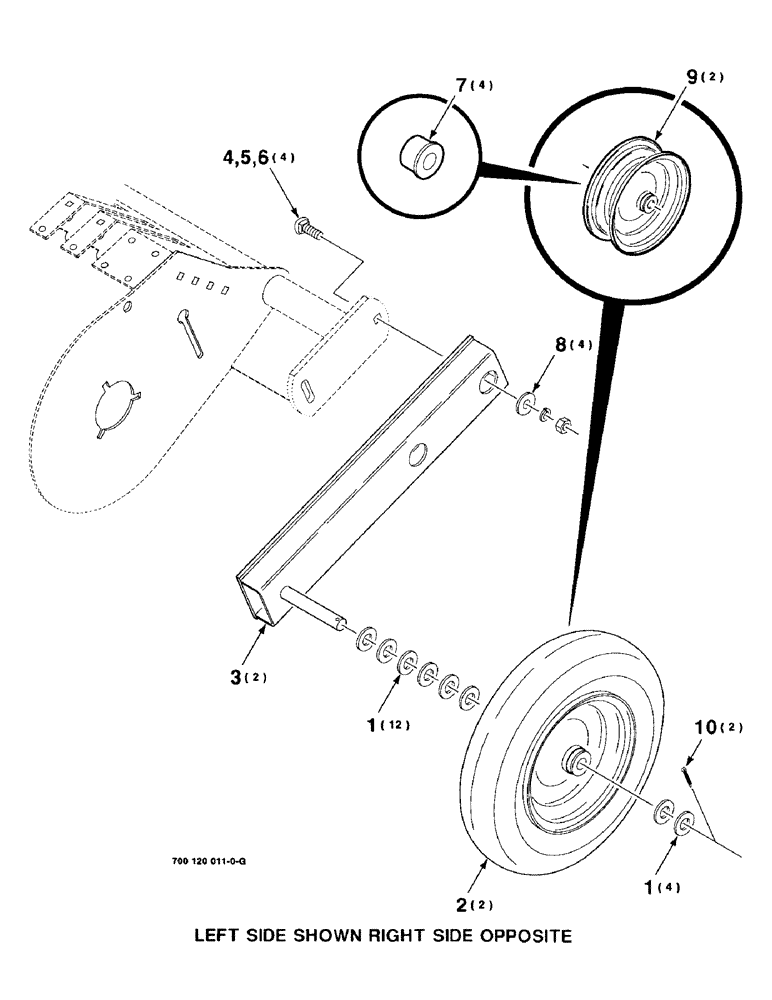

Запчасти Case IH 8480 (7-08) - GAUGE WHEEL ASSEMBLY (12) - MAIN FRAME

1

705566

WASHER

3/4 HARDENED PLAIN WASHER

16шт.

2

700709878

WHEEL

AND TIRE ASSEMBLY (Includes Items 7 and 9)

2шт.

3

700122927

STRUT

2шт.

4

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 X 1-1/2 RHSNB

4шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

6

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

7

700709967

BUSHING

BEARING - flanged

4шт.

8

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

4шт.

9

700709966

RIM

WHEEL - gauge (Includes Item 7)

2шт.

10

432-1220

COTTER PIN,3/16" x 1 1/4"

3/16" x 1 1/4"

2шт.
