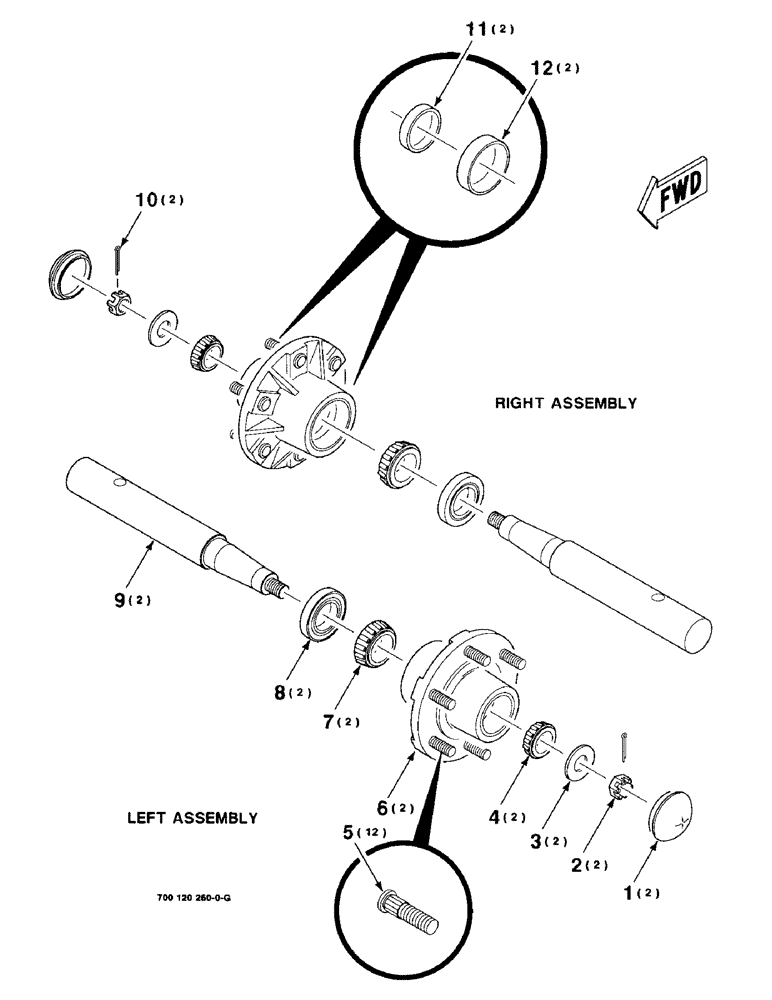

Запчасти Case IH 8480 (7-06) - HUB AND AXLE ASSEMBLIES (12) - MAIN FRAME

1

518842R1

CAP

- hub

2шт.

2

425-1312

SLOTTED NUT,3/4"-16, G5

3/4-16 SLOTTED HEX NUT

2шт.

3

26971

WASHER

- special

2шт.

4

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - bearing (outer)

2шт.

5

826370

BOLT,Ribbed Nk, 9/16" - 18 x 2.12"

9/16-18 X 2-1/8 STUD - wheel

12шт.

6

700709830

HUB

ASSEMBLY (Includes Items 5, 11 and 12)

2шт.

7

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE - bearing (inner)

2шт.

8

844050

SEAL

2шт.

9

700120262

SPINDLE

- axle

2шт.

10

432-1024

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

2шт.

11

651817R1

BEARING CUP

CUP - bearing (outer)

2шт.

12

663558R1

BEARING CUP

CUP - bearing (inner)

2шт.
