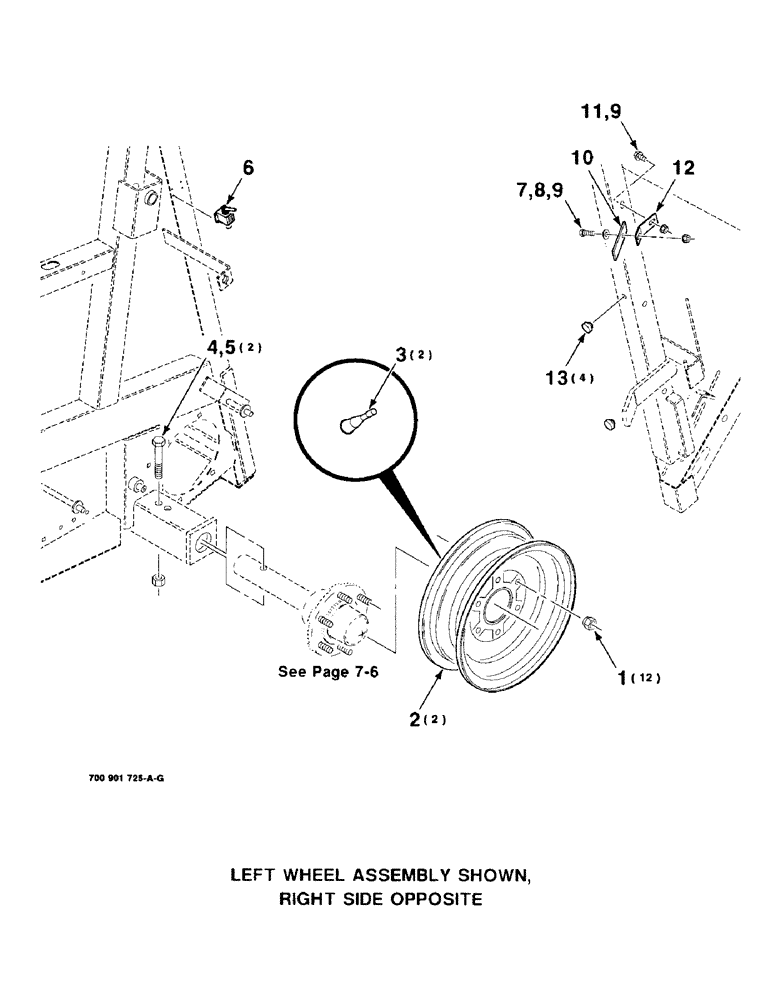

Запчасти Case IH 8480 (7-04) - WHEEL, AXLE AND BALE COUNTER ASSEMBLIES (12) - MAIN FRAME

1

G49041

WHEEL NUT

9/16-18 WHEEL NUT

12шт.

2

T39714

WHEEL

RIM - wheel (high flotation - 13.5 x 15) (Includes Item 6)

2шт.

3

A38261

VALVE

STEM

2шт.

4

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

2шт.

5

230-41110

LOCK NUT,5/8"-11, GA

5/8-11 HTLN GR/B

2шт.

6

7894470

COUNTER

BALE COUNTER

1шт.

7

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

8

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

1шт.

9

231-5146

FLANGE NUT,3/8"-16

2шт.

10

1713155

FLAP

- counter

1шт.

11

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

1шт.

12

700120867

SUPPORT

1шт.

13

700709666

BUMPER

- rubber

4шт.
