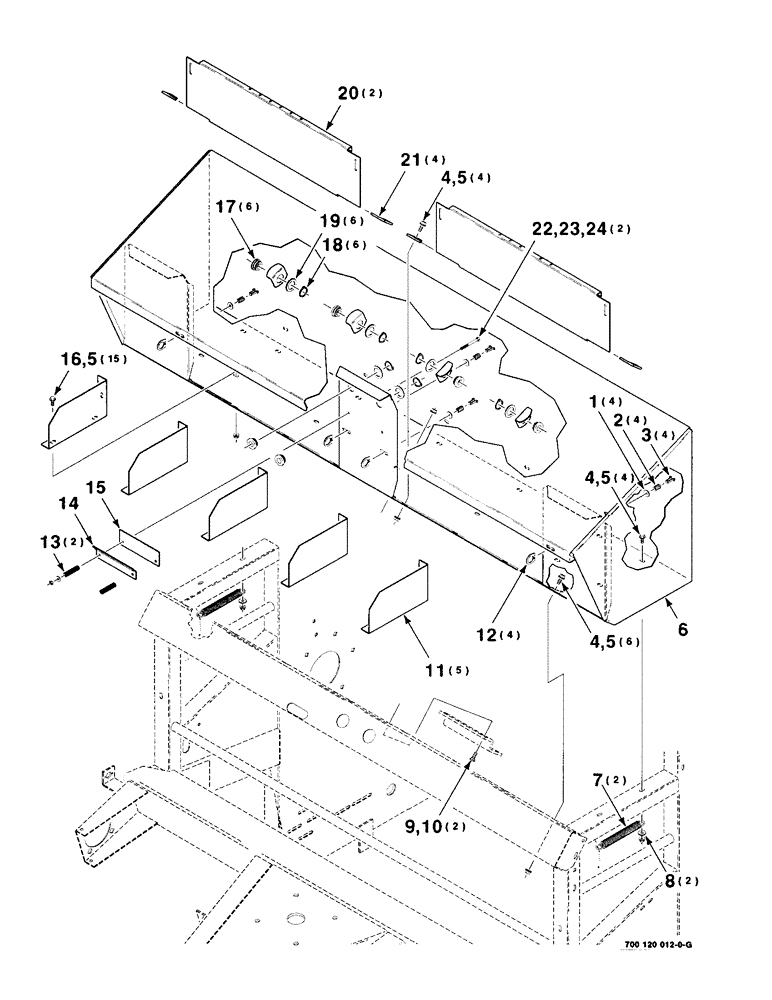

Запчасти Case IH 8480 (7-02) - TWINE BOX ASSEMBLY (12) - MAIN FRAME

1

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

4шт.

2

7758212

SPRING

4шт.

3

7894975

CLIP

4шт.

4

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

14шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

29шт.

6

700120332

BOX

TWINE BOX

1шт.

7

58941

SPRING

2шт.

8

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16 WIDE PLAIN WASHER

2шт.

9

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

2шт.

10

231-5146

FLANGE NUT,3/8"-16

2шт.

11

700120339

DIVIDER

5шт.

12

7894967

HANDLE

4шт.

13

700707677

SPRING

2шт.

14

700120341

GUIDE

- twine

1шт.

15

700120342

PLATE

- twine

1шт.

16

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

15шт.

17

700107977

GUIDE

- twine

6шт.

18

100-11100

SNAP RING,#100, Ext

Ring, Snap, #100, Ext

6шт.

19

195-2103

WASHER,1 1/16" x 1 1/2" x .065"

1 X 18 GAUGE NRMB

6шт.

20

700120346

DOOR

- twine box

2шт.

21

700120343

HINGE

4шт.

22

113-12

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

1/4-20 X 2-1/2 C

2шт.

23

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4 HARDENED PLAIN WASHER

2шт.

24

232-4114

LOCK NUT,1/4"-20, GC

1/4-20 HTLN GR B

2шт.
