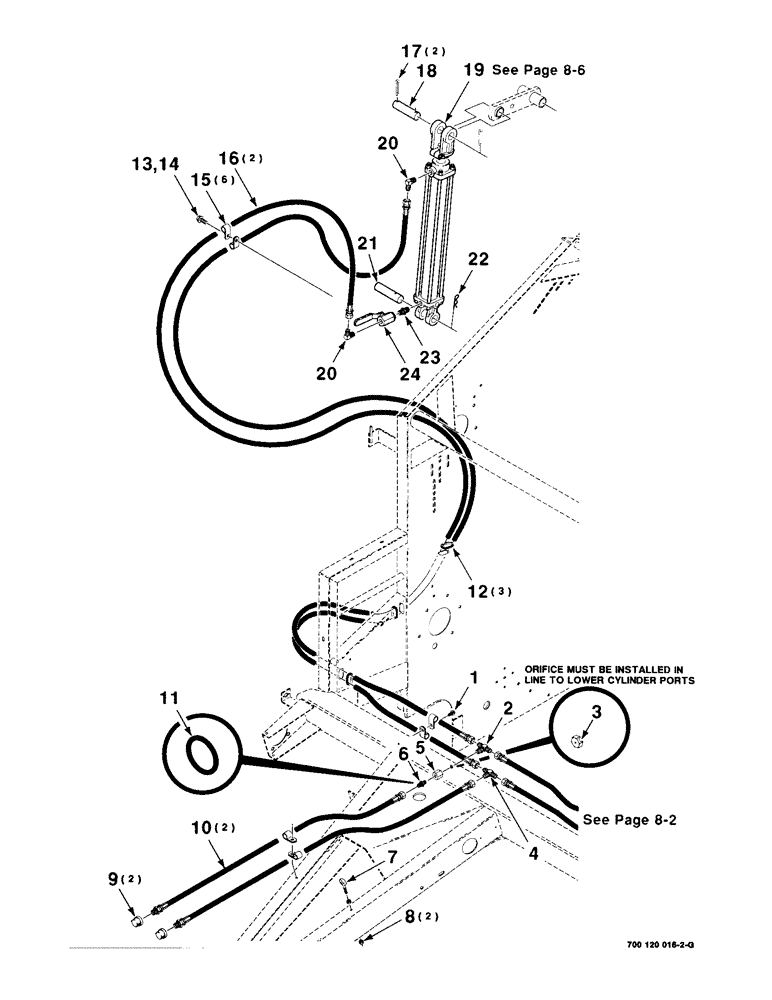

Запчасти Case IH 8480 (8-04) - HYDRAULIC ASSEMBLY, RIGHT (07) - HYDRAULICS

1

172463

SELF-TAP SCREW,Hex Hd, 5/16" x 1"

5/16-18 X 3/4 HWHTCTS

1шт.

2

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- hydraulic

1шт.

3

674516R1

PORT

ORIFICE

1шт.

4

218-593

TEE,9/16"-18, 37 Degree

1шт.

5

700120630

COUPLING

- special

1шт.

6

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - flared (Incl. Item 11)

1шт.

7

866061

EYEBOLT

1шт.

8

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

9

746677

CAP

- pipe

2шт.

10

700709591

HYDRAULIC HOSE,6.35 mm ID x 2900.00 mm, TYPE 100R7

6.35 mm ID x 2900.00 mm, TYPE 100R7

2шт.

11

738468

O-RING

1шт.

12

248-21114

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

3шт.

13

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

1шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

1шт.

15

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

Line 1/2", Insul, 1/2" Bolt

6шт.

16

7075781

HYDRAULIC HOSE,0.25" ID x 108.27", SAE 100R7

HOSE - hydraulic

2шт.

17

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2шт.

18

700120264

PIN

1шт.

19

700709594

CYLINDER

COMPLETE - hydraulic

1шт.

20

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

90 DEGREES

2шт.

21

700120265

PIN

1шт.

22

62455

PIN, SPLIT (COTTER)

.178 WIRE HAIR PIN COTTER

1шт.

23

217-1081

HYD CONNECTOR,3/8" - 18 NPTF

NIPPLE - hex 3/8-18

1шт.

24

700709593

VALVE

1шт.
