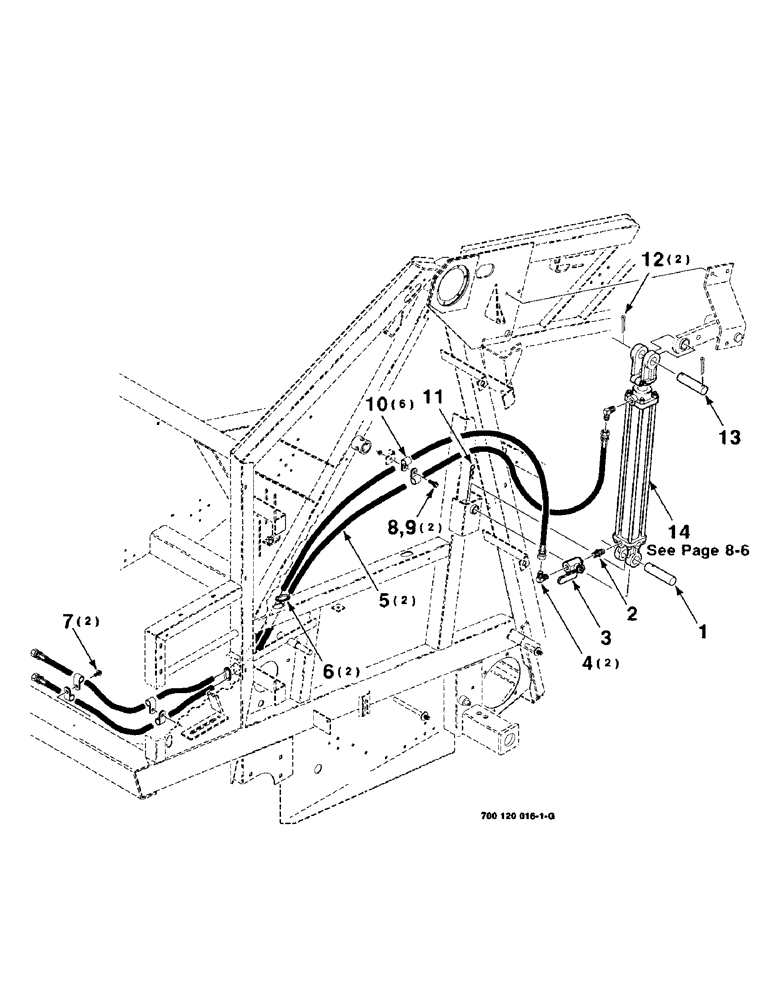

Запчасти Case IH 8480 (8-02) - HYDRAULIC ASSEMBLY, LEFT (07) - HYDRAULICS

1

700120265

PIN

1шт.

2

217-1081

HYD CONNECTOR,3/8" - 18 NPTF

NIPPLE - hex 3/8-18

1шт.

3

700709593

VALVE

1шт.

4

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

90 DEGREES

2шт.

5

7075781

HYDRAULIC HOSE,0.25" ID x 108.27", SAE 100R7

HOSE - hydraulic

2шт.

6

248-21114

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

2шт.

7

172463

SELF-TAP SCREW,Hex Hd, 5/16" x 1"

5/16-18 X 3/4 HWHTCTS

2шт.

8

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

2шт.

10

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

Line 1/2", Insul, 1/2" Bolt

6шт.

11

062455

PIN, SPLIT (COTTER)

.178 WIRE HAIR PIN COTTER

1шт.

12

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2шт.

13

700120264

PIN

1шт.

14

700709594

CYLINDER

COMPLETE - hydraulic

1шт.
