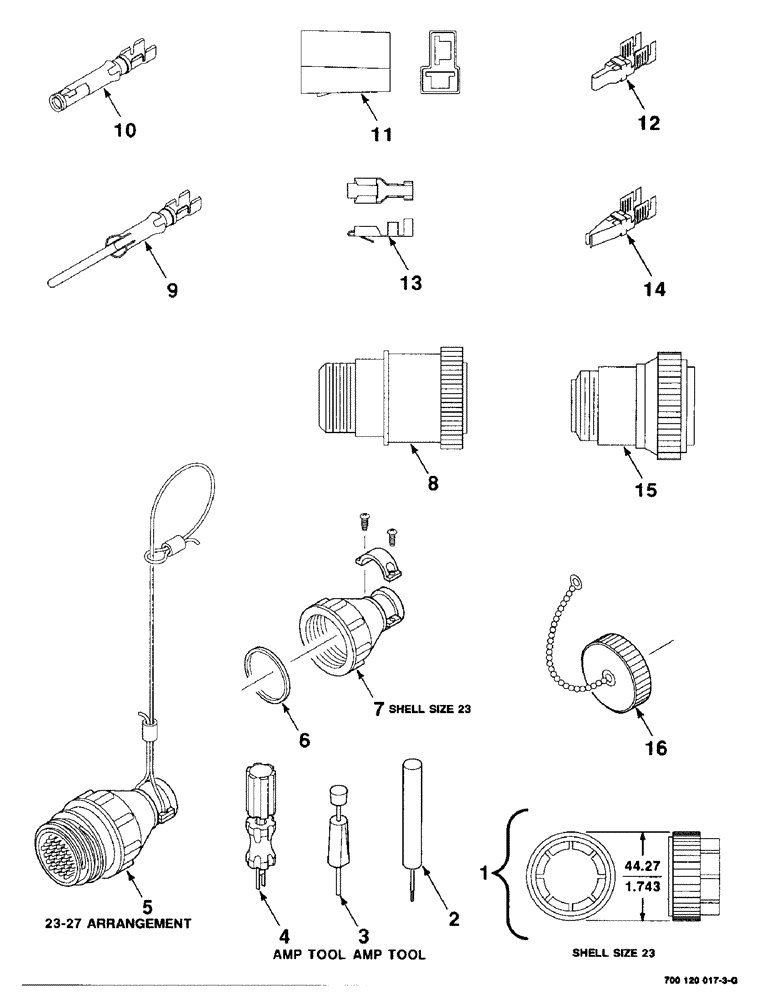

Запчасти Case IH 8480 (4-10) - ELECTRICAL, SERVICE PARTS (06) - ELECTRICAL

1

60-6129T2

CONNECTION

RING - coupling, shell size 23

1шт.

2

700708683

PIN

EXTRACTOR - pin

1шт.

3

131503C1

TOOL

EXTRACTION TOOL

1шт.

4

700707014

TERMINAL CONNECTOR

EXTRACTION TOOL

1шт.

5

700713300

ELEC CONNECTOR

PLUG ASSEMBLY - service, standard sex, free hanging, w/peripheral seal

1шт.

6

700711660

SEAL

- peripheral

1шт.

7

700709911

CLAMP

- cable, shell size 23

1шт.

8

700709912

CONNECTION,ELECTRIC

RECEPTACLE

1шт.

9

700709919

PIN

1шт.

10

700709914

SOCKET

1шт.

11

877291R1

ELEC CONNECTOR,Female

CONNECTOR

1шт.

12

700709767

CONTACT

- male

1шт.

13

S107079

TERMINAL CONNECTOR

TERMINAL - female

1шт.

14

700709706

TERMINAL

SOCKET - female

1шт.

15

700709913

PLUG

- connector

1шт.

16

700712983

CAP

- sealing

1шт.
