(4-08) - ACTUATOR ASSEMBLY, 700709661 ACTUATOR ASSEMBLY COMPLETE

Запчасти Case IH 8480 (4-08) - ACTUATOR ASSEMBLY, 700709661 ACTUATOR ASSEMBLY COMPLETE (06) - ELECTRICAL

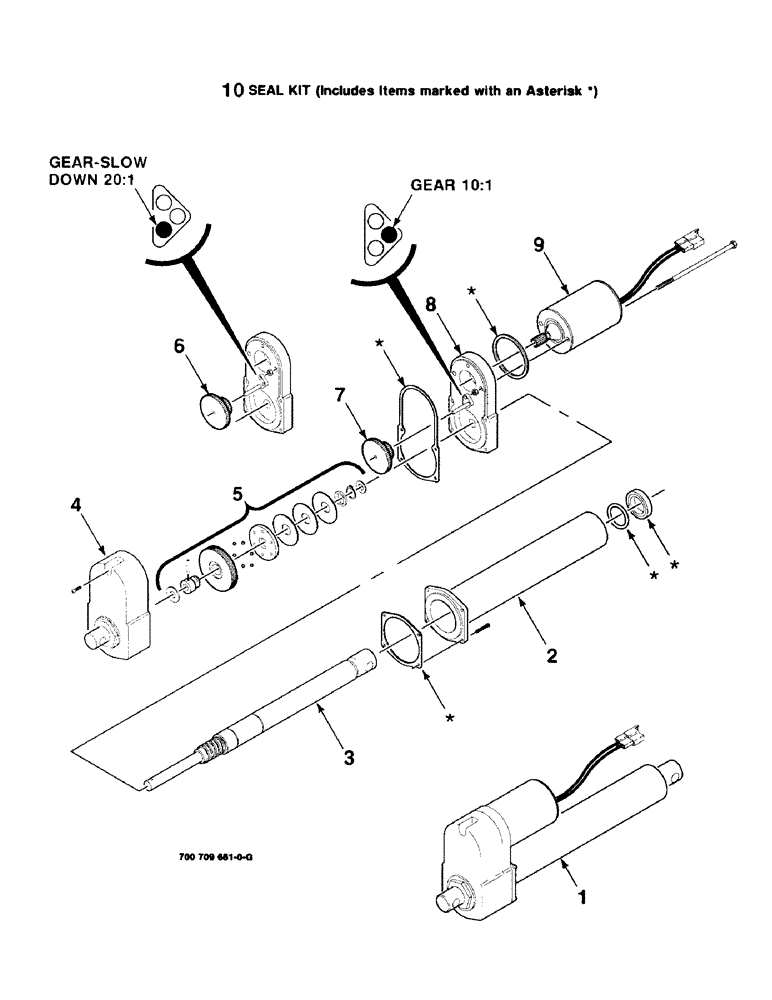

Схема запчастей Case IH 8480 - (4-08) - ACTUATOR ASSEMBLY, 700709661 ACTUATOR ASSEMBLY COMPLETE (06) - ELECTRICAL
5
10
8
4
7
1
9
3
2
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700709661

ASSEMBLY

ACTUATOR - linear complete

1шт.

2

700709904

COVER

- tube

1шт.

3

700709903

SCREW

DRIVE SCREW ASSEMBLY

1шт.

4

700704854

HOUSING

- rear

1шт.

5

1281485C1

CLUTCH

ASSEMBLY

1шт.

6

91230C1

GEAR

- intermediate 20:1 (slow down)

1шт.

7

1281484C1

GEAR

- intermediate 10:1

1шт.

8

1281488C1

HOUSING

- front

1шт.

9

700704871

MOTOR, ELECTRIC

MOTOR - electric

1шт.

10

1281489C1

SEAL KIT

O-RING AND SEAL REPAIR KIT Includes items in art marked with asterisk

1шт.
