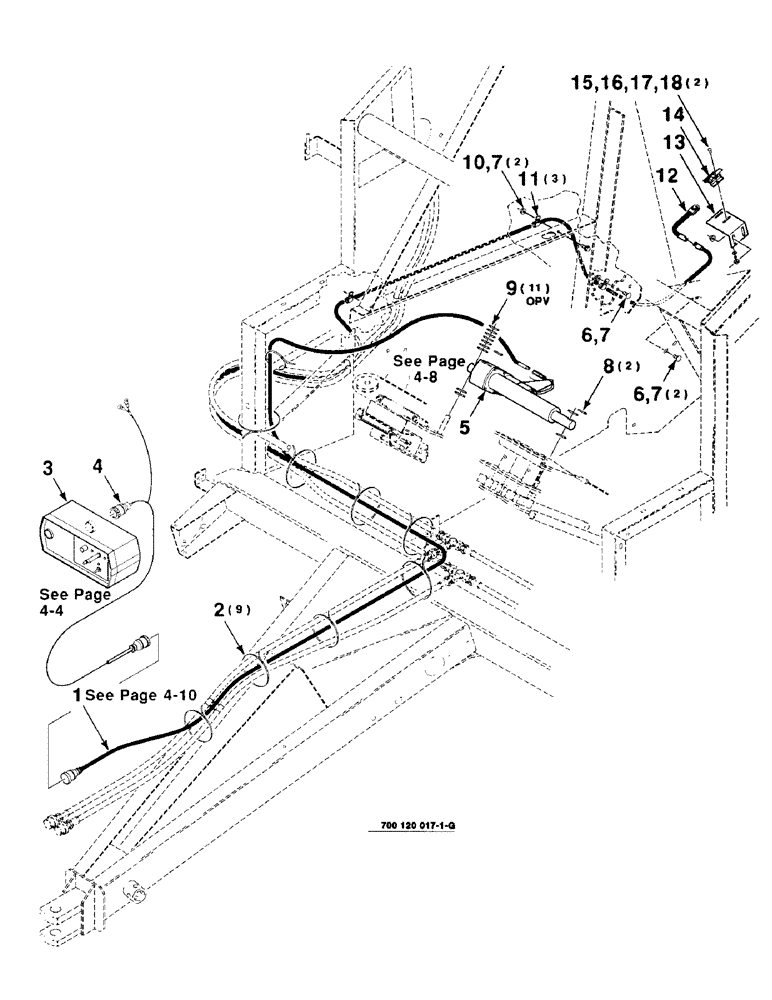

Запчасти Case IH 8480 (4-02) - ELECTRICAL ASSEMBLY (06) - ELECTRICAL

1

700709702

HARNESS

- wire, baler

1шт.

Ref 1 700709702 the recptacle for this harness is 700709912 (called a std sex free hanging receptacle)

1шт.

2

7021728

STRAP

TIE - cable

9шт.

3

700709723

CONSOLE

BOX - control

1шт.

4

700709703

HARNESS

- control box

1шт.

5

700709661

ASSEMBLY

ACTUATOR

1шт.

6

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

3шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

5шт.

8

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.

9

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

11шт.

10

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

11

700708090

CLAMP

- line

3шт.

12

700715140

SWITCH

- normally closed

1шт.

13

700120872

PLATE

SUPPORT - switch

1шт.

14

700715141

COVER

- switch

1шт.

15

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

#10-24 X 1/2 CRPHMS

2шт.

16

195-513

WASHER,#10

PLAIN WASHER #10

2шт.

17

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

18

225-14110

NUT,#10-24

2шт.

CAM/CNS 9/1/99

1шт.
