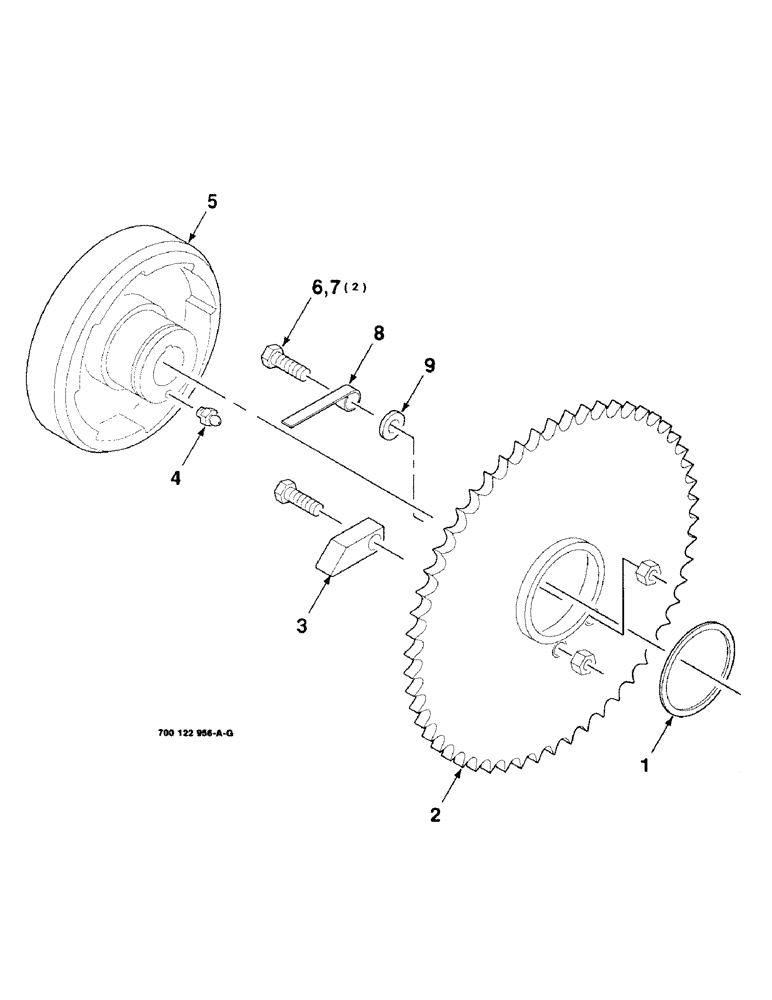

Запчасти Case IH 8480 (3-12) - RATCHET ASSEMBLY, SERIAL NUMBER CFH0051001 THROUGH CFH0051672 Pickup

1

052027

RING, SNAP

SNAP - ring

1шт.

2

700122957

SPROCKET ASSY.

SPROCKET - 54 tooth (87 rpm)

1шт.

3

6225759

PAWL

1шт.

4

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

5

6225742

HUB

- ratchet

1шт.

6

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

7

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

8

700710513

SPRING

- leaf

1шт.

9

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

1шт.
