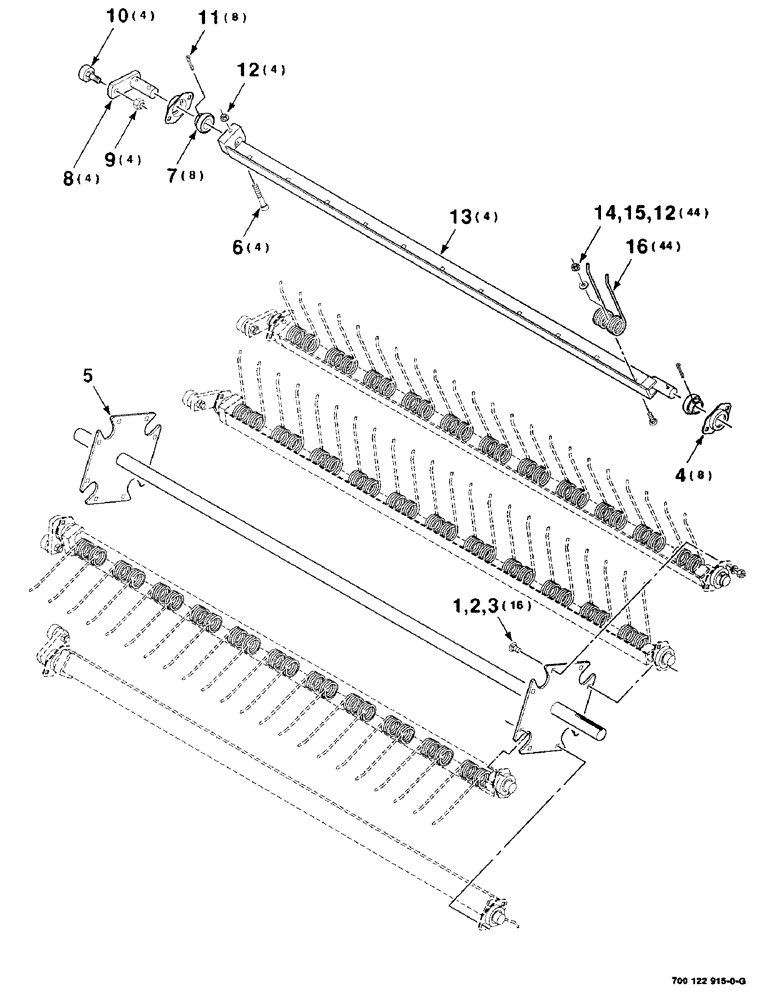

Запчасти Case IH 8480 (3-10) - PICKUP ROTOR ASSEMBLY Pickup

1

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

16шт.

2

492-11038

LOCK WASHER,3/8"

16шт.

3

425-106

NUT,3/8"-16, Cl 5

16шт.

4

700108622

FLANGED BEARING

FLANGE - bearing

8шт.

5

700122916

ROTOR

WA

1шт.

6

61-636

HEX SOC SCREW,3/8"-16 x 2 1/4"

3/8-16 X 2-1/4 HSHCS SPL

4шт.

7

710392

BEARING, ROLLER, CYL,27.33 mm ID x 47.09 mm OD x 25.4 mm

BEARING - spherical

8шт.

8

700122922

CRANK

WA

4шт.

9

702700045

LOCK NUT

1/2-20 SPIRALOCK NUT G8

4шт.

10

700705612

CAM FOLLOWER

BEARING - cam, follower

4шт.

11

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

8шт.

12

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

48шт.

13

700122920

ANGLE

- tine, support

4шт.

14

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

44шт.

15

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

44шт.

16

700709210

TOOTH

TINE - double

44шт.

700714459

TORSION SPRING,Coiled, 2 Prong, 203mm L

TINE - double

44шт.
