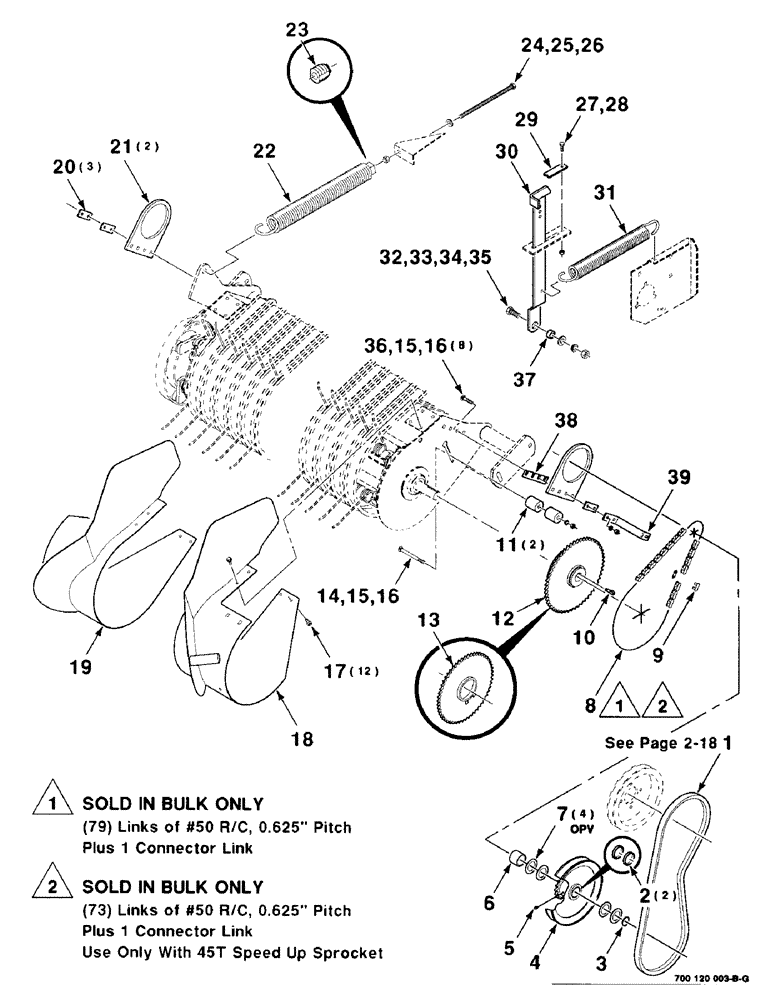

Запчасти Case IH 8480 (3-08) - PICKUP DRIVE AND DEFLECTOR ASSEMBLY, SERIAL NUMBER CFH0051673 AND LATER Pickup

1

855064

V-BELT,0.88" W x 69.00" L

1шт.

2

805580

BRONZE BUSHING

BUSHING - bronze

2шт.

3

100-11137

SNAP RING,#137, Ext

Ring, Snap, #137, Ext

1шт.

4

700126988

SHEAVE

WA (Includes Item 2)

1шт.

5

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

6

700126757

SPACER

1шт.

7

195-2139

WASHER,36.52mm ID x 57.15mm OD x 2.03mm Thk

1-3/8 X 14GA NRMB

4шт.

8

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

CHAIN - roller, #50 (10 foot bulk)

1шт.

9

241-1315

LINK, CONNECTING

CONNECTOR - link #50 R/C

1шт.

10

249-1

KEY

1/4 X 1-3/4 KEY - gib

1шт.

11

700709425

TIGHTENER

SLIDE - chain

2шт.

12

700126992

SPROCKET ASSY.

SPROCKET WA - 54 tooth

1шт.

13

700114748

SPROCKET

WA - 45 tooth (speed up)

1шт.

14

433-672

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 4 1/2", Gr 5

3/8-16 X 4-1/2 RHSNB

1шт.

15

492-11038

LOCK WASHER,3/8"

9шт.

16

425-106

NUT,3/8"-16, Cl 5

9шт.

17

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Hex Flg, 5/16-18 x 3/4", Serr

12шт.

18

700120912

DEFLECTOR

WA - left

1шт.

19

700120913

DEFLECTOR

WA - right

1шт.

20

700122950

PLATE

3шт.

21

700122941

PLATE

- pivot, pickup

2шт.

22

700120902

SPRING

ASSEMBLY (Includes Item 23)

1шт.

23

700120868

PLUG

- spring

1шт.

24

7773385

BOLT,Hex, 1/2" - 13 x 10", Gr 5, Full Thd

1/2-13 X 10 FTB

1шт.

25

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

1шт.

26

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

27

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

28

231-4116

NUT,3/8"-16, GB

3/8-16 HTLN GR/B

1шт.

29

700122964

STOP

1шт.

30

700122947

SUPPORT

WA

1шт.

31

700709632

SPRING

1шт.

32

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

1шт.

33

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

1шт.

34

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

35

425-1010

NUT,5/8"-11, G5

1шт.

36

433-628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

3/8-16 X 1-3/4 RHSNB

8шт.

37

700106060

SPACER

1шт.

38

700126727

SHIM

1шт.

39

700126754

SUPPORT

1шт.
