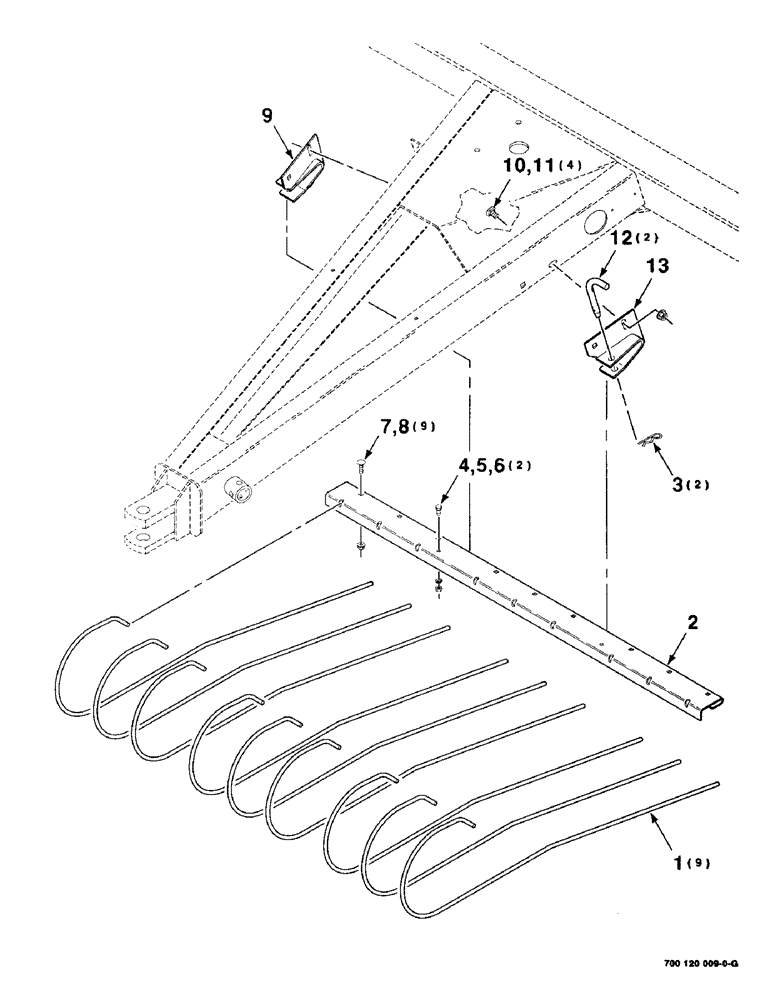

Запчасти Case IH 8480 (3-02) - WINDGUARD AND MOUNTING ASSEMBLY Pickup

1

700709453

ROD

- windguard

9шт.

2

700122914

SUPPORT

- windguard

1шт.

3

S120261

PIN

HAIRPIN - cotter

2шт.

4

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

5

492-11038

LOCK WASHER,3/8"

2шт.

6

425-106

NUT,3/8"-16, Cl 5

2шт.

7

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

9шт.

8

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

9шт.

9

700120300

SUPPORT

- right

1шт.

10

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 X 1 RHSNB

4шт.

11

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

4шт.

12

700120306

PIN

2шт.

13

700120299

SUPPORT

- left

1шт.
