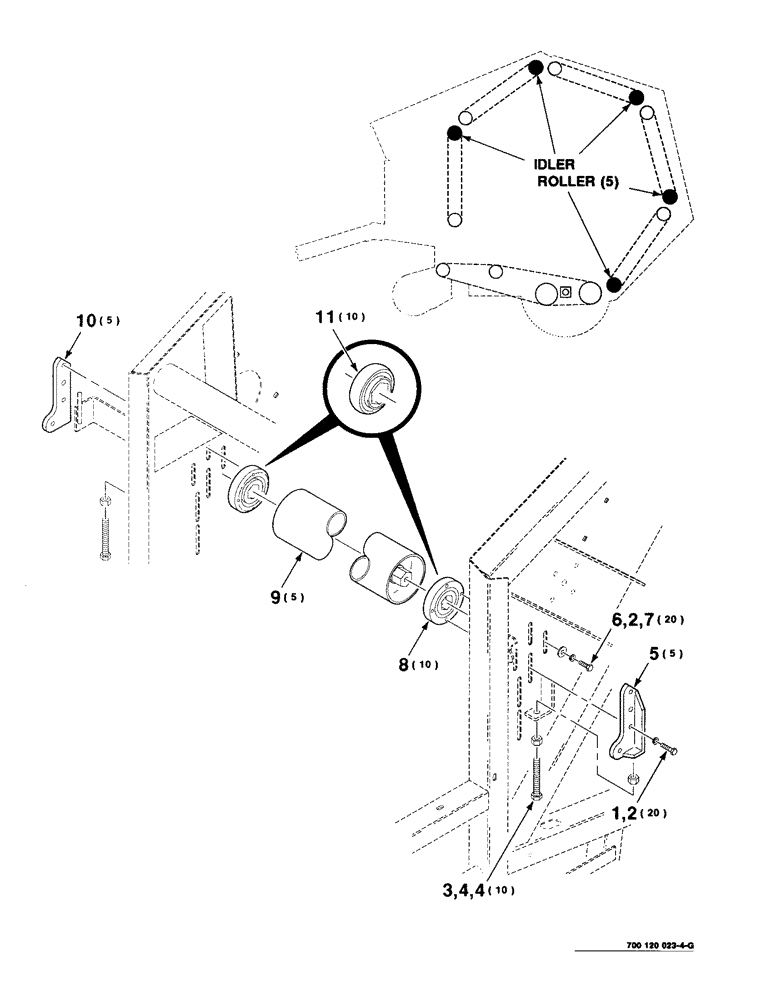

Запчасти Case IH 8480 (2-28) - ROLLER, IDLER AND SUPPORT ASSEMBLIES Driveline

1

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

5/16-18 X 1-1/4 C

20шт.

2

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

40шт.

3

873422

CAPSCREW,Hex, 1/2" - 13 x 3 1/2", Gr 5, Full Thd

1/2-13 X 3-1/2 FTC

10шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

20шт.

5

700120227

SUPPORT

- roller, left

5шт.

6

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

C Hex, 5/16"-18 x 1", G5, Full Thd

20шт.

7

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16 WIDE PLAIN WASHER

20шт.

8

700120267

COLLAR

ASSEMBLY (Includes Item 11)

10шт.

9

700709833

ROLLER

- idler

5шт.

10

700120228

SUPPORT

- roller, right

5шт.

11

700709621

SPHERICAL BEARING,31.78mm Hex x 72mm OD x 25mm W

BEARING - spherical (hex bore)

10шт.
