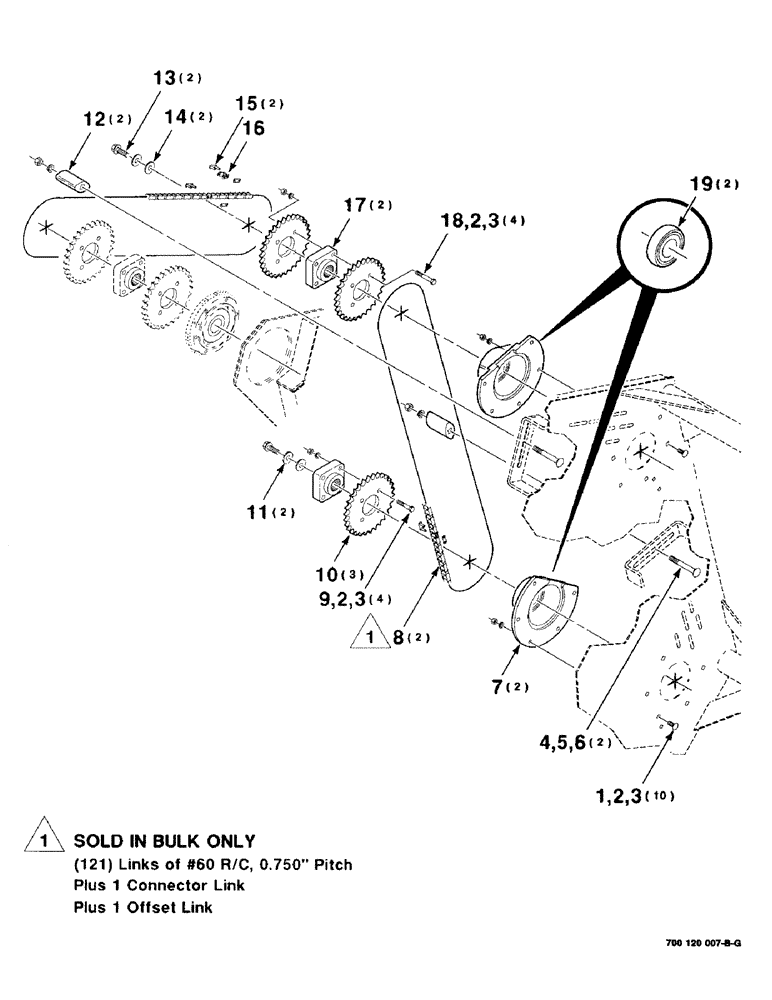

Запчасти Case IH 8480 (2-24) - ROLLER DRIVE ASSEMBLY, TAILGATE Driveline

1

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSSNB

10шт.

2

492-11038

LOCK WASHER,3/8"

18шт.

3

425-106

NUT,3/8"-16, Cl 5

18шт.

4

411-864

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 4", Gr 2

1/2-13 X 4 RHSNB

2шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

6

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

7

700120234

HOUSING ASSY.

HOUSING ASSEMBLY (Includes Item 19)

2шт.

8

611362R91

CHAIN (AG)

CHAIN - roller #60 (10 foot bulk)

2шт.

9

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

10

700120239

SPROCKET ASSY.

SPROCKET - 30 tooth

3шт.

11

700120270

WASHER

- special

2шт.

12

700709424

TIGHTENER

CASTING - chain tightener

2шт.

13

8701237

BOLT

1/2-13 X 1-1/2 HFS GR8

2шт.

14

700711557

WASHER

1/2 HARDENED WIDE PLAIN WASHER

2шт.

15

241-1416

LINK

- connector, #60 R/C

2шт.

16

241-1716

LINK,19.05mm Pitch

OFFSET LINK (o-ring)

1шт.

17

700120251

HUB

- splined

2шт.

18

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

4шт.

19

1322251C91

COLLAR

BEARING - spherical

2шт.

THIS PART IS ONLY A COLLAR. IF A BEARING IS NEEDED THE PART NUMBER FOR THE BEARING IS 96328C1.

1шт.
