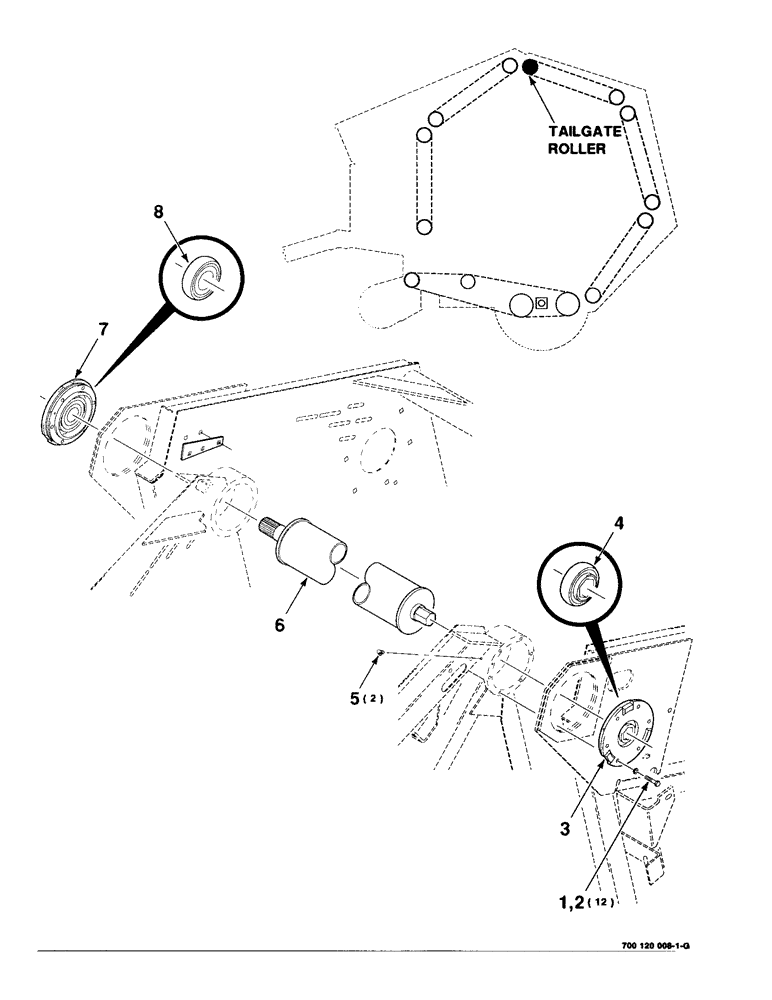

Запчасти Case IH 8480 (2-22) - ROLLER AND TAILGATE PIVOT ASSEMBLIES Driveline

1

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

12шт.

2

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

3

700120268

HOUSING

ASSEMBLY - pivot, left (Includes Item 4)

1шт.

4

700709621

SPHERICAL BEARING,31.78mm Hex x 72mm OD x 25mm W

BEARING - spherical (hex bore)

1шт.

5

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

2шт.

6

700709834

ROLLER

- upper, tailgate

1шт.

7

700120266

HOUSING

ASSEMBLY - pivot, right (Includes Item 8)

1шт.

8

1322251C91

COLLAR

BEARING - spherical

1шт.

Ref 8 THIS PART IS ONLY A COLLAR. IF A BEARING IS NEEDED THE PART NUMBER FOR THE BEARING IS 96328C1.

1шт.
