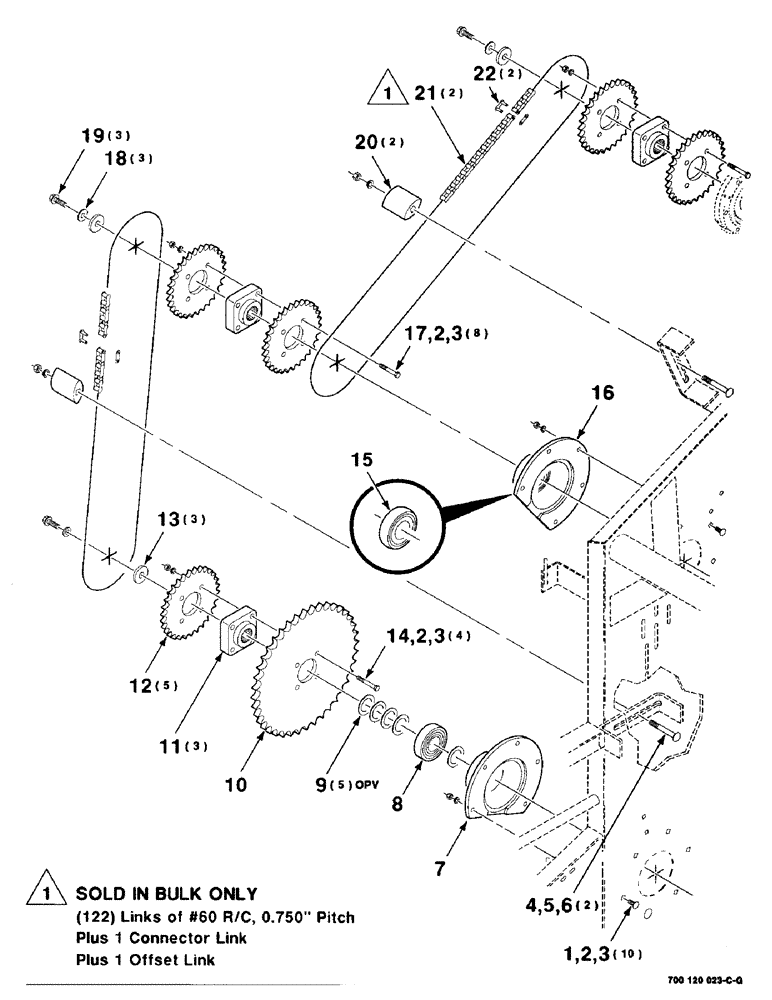

Запчасти Case IH 8480 (2-20) - ROLLER DRIVE ASSEMBLY Driveline

1

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSSNB

10шт.

2

492-11038

LOCK WASHER,3/8"

22шт.

3

425-106

NUT,3/8"-16, Cl 5

22шт.

4

411-864

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 4", Gr 2

1/2-13 X 4 RHSNB

2шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

6

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

7

700120233

SUPPORT

HOUSING - bearing, right

1шт.

8

462182R91

BEARING, BALL,40mm ID x 90mm OD x 23mm W

BEARING - cylindrical

1шт.

9

700709599

WASHER

1-5/8 X 14 GAUGE NRMB

5шт.

10

700120248

SPROCKET ASSY.

SPROCKET - 42 tooth

1шт.

11

700120251

HUB

- splined

3шт.

12

700120239

SPROCKET ASSY.

SPROCKET - 30 tooth

5шт.

13

700120270

WASHER

- special

3шт.

14

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

4шт.

15

96328C1

BALL BEARING,40mm ID x 80mm OD x 22mm W

- spherical

1шт.

16

700120234

HOUSING ASSY.

HOUSING - bearing (Includes Item 15)

1шт.

17

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

8шт.

18

700711557

WASHER

1/2 HARDENED WIDE PLAIN WASHER

3шт.

19

8701237

BOLT

1/2-13 X 1-1/2 HFS GR8

3шт.

20

700709424

TIGHTENER

CASTING - chain, tightener

2шт.

21

611362R91

CHAIN (AG)

CHAIN - roller #60 (10 foot bulk)

2шт.

22

241-1416

LINK

- connector, #60 R/C

2шт.
