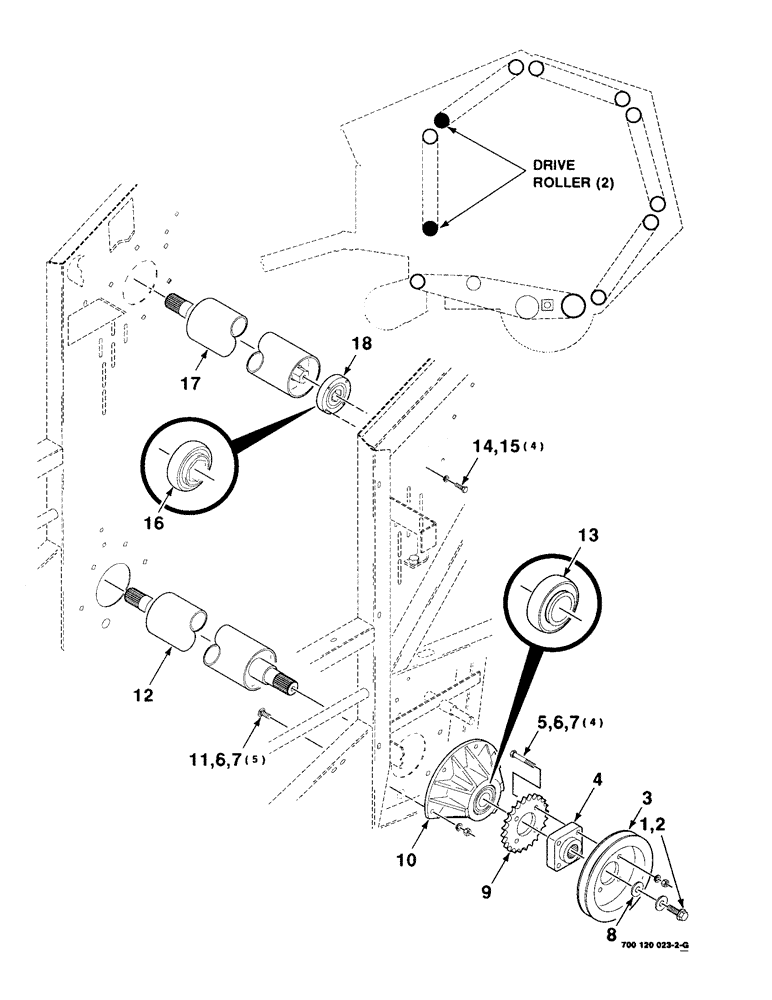

Запчасти Case IH 8480 (2-18) - ROLLER AND DRIVE ASSEMBLY, FRONT Driveline

1

8701237

BOLT

1/2-13 X 1-1/2 HFS GR8

1шт.

2

700711557

WASHER

1/2 HARDENED WIDE PLAIN WASHER

1шт.

3

700120259

SHEAVE

1шт.

4

700120251

HUB

- splined

1шт.

5

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

4шт.

6

492-11038

LOCK WASHER,3/8"

9шт.

item # 16

1шт.

7

425-106

NUT,3/8"-16, Cl 5

9шт.

8

700120270

WASHER

- special

1шт.

9

700120255

SPROCKET ASSY.

SPROCKET - 24 tooth

1шт.

10

700120234

HOUSING ASSY.

HOUSING ASSEMBLY (Includes Item 13)

1шт.

11

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSSNB

5шт.

12

700709835

ROLLER

- lower

1шт.

13

1322251C91

COLLAR

BEARING - spherical

1шт.

Ref 13 THIS PART IS ONLY A COLLAR. IF A BEARING IS NEEDED THE PART NUMBER FOR THE BEARING IS 96328C1.

1шт.

14

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

C Hex, 5/16"-18 x 1", G5, Full Thd

4шт.

15

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

16

700709621

SPHERICAL BEARING,31.78mm Hex x 72mm OD x 25mm W

BEARING - spherical (hex bore)

1шт.

17

700709836

ROLLER

- upper

1шт.

18

700120267

COLLAR

ASSEMBLY (Includes Item 16)

1шт.

FOR APPLICATIONS WHICH REQUIRE A HEXAGON BORE ONLY. IF

1шт.

APPLICATION REQUIRES A SPLINED BORE, USE 228695A1.

1шт.
