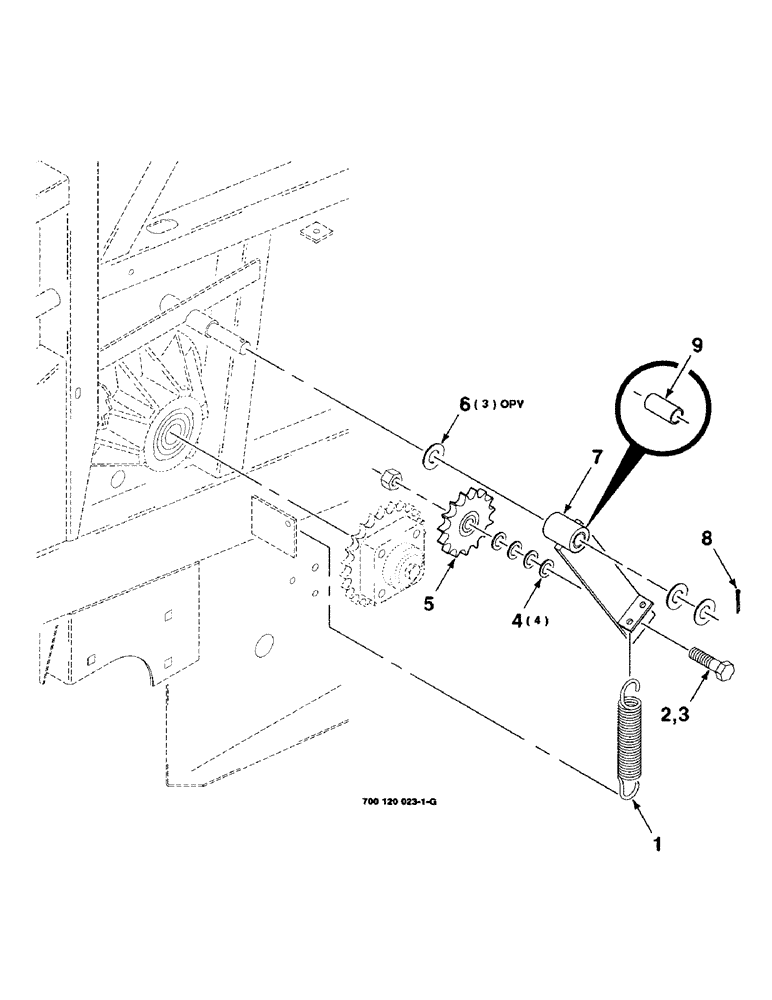

Запчасти Case IH 8480 (2-16) - IDLER ASSEMBLY, DRIVE CHAIN, LEFT Driveline

1

700709641

SPRING

1шт.

2

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

5/8-11 X 2-1/4 C

1шт.

3

230-41110

LOCK NUT,5/8"-11, GA

5/8-11 HTLN GR/B

1шт.

4

52233

BUSHING

5/8 X 14 GAUGE NRMB

4шт.

5

541857R92

SPROCKET,15T

IDLER - sprocket, 15 tooth

1шт.

6

52928

WASHER

3/4 X 14 GAUGE WRMB

3шт.

7

700120286

ARM

- idler (Includes Item 9)

1шт.

8

432-1220

COTTER PIN,3/16" x 1 1/4"

3/16" x 1 1/4"

1шт.

9

711580

BUSHING

1шт.
