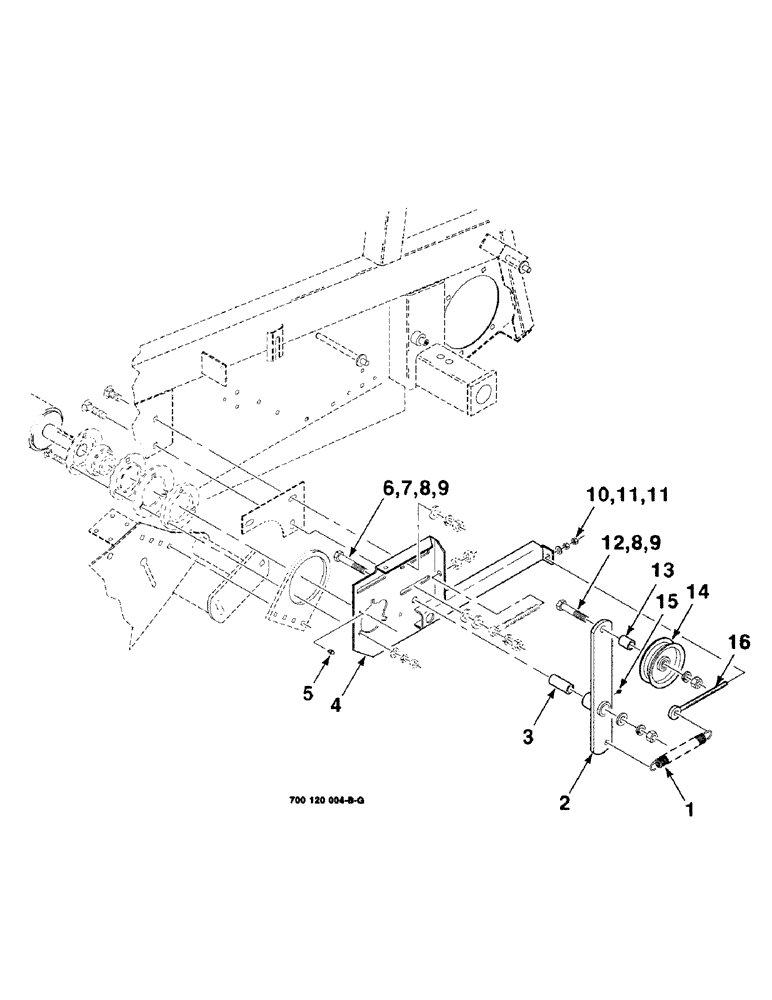

Запчасти Case IH 8480 (2-12) - DRIVE ASSEMBLY, LOWER, LEFT, SERIAL NUMBER CFH0051673 AND LATER Driveline

1

858167

SPRING

- extension

1шт.

2

700126742

ARM

WA

1шт.

3

6179220

SPACER

1шт.

4

700126751

SUPPORT

WA - left

1шт.

5

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

1шт.

6

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

7

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

1шт.

8

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

9

425-1010

NUT,5/8"-11, G5

2шт.

10

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

1шт.

11

425-106

NUT,3/8"-16, Cl 5

2шт.

12

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

5/8-11 X 3-1/4 C

1шт.

13

6136964

SPACER

- lower

1шт.

14

662958R91

PULLEY

IDLER

1шт.

15

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

16

51200285

SCREW

DRAW - bolt

1шт.
