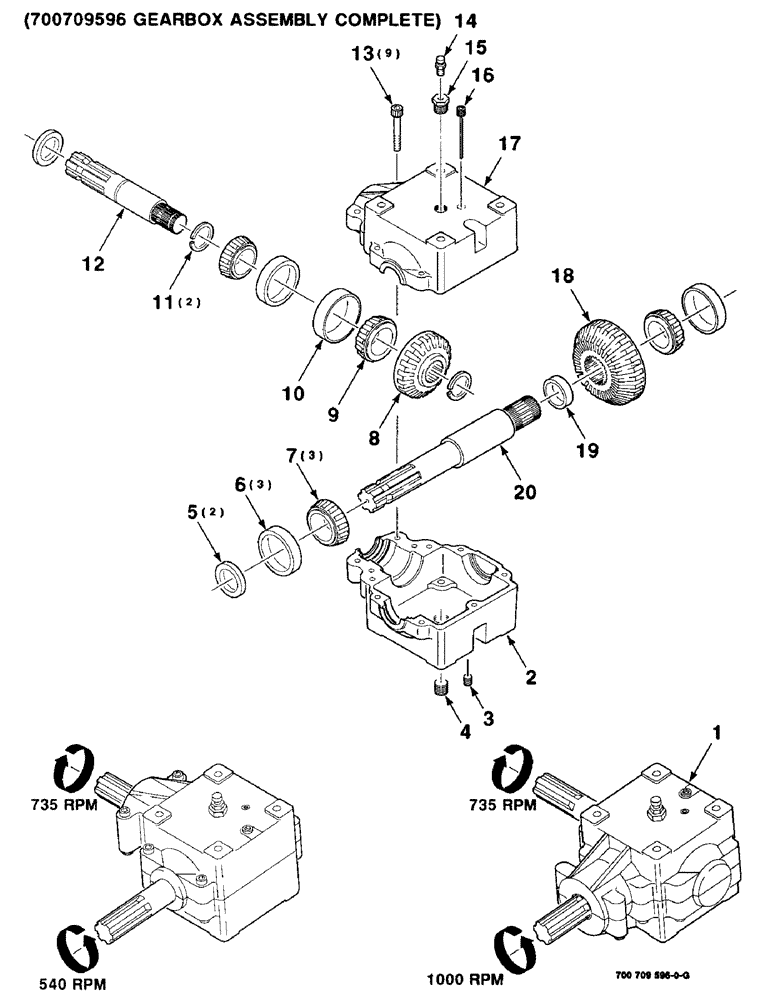

Запчасти Case IH 8480 (2-08) - GEARBOX ASSEMBLY, 700709596 GEARBOX ASSEMBLY COMPLETE Driveline

1

700709596

GEARBOX ASSY

GEARBOX COMPLETE

1шт.

ref 1-- Used for both 540 and 1000 rpm...gearbox is reversed for 1000 rpm use.

1шт.

2

700710825

CASTING

(tapped holes)

1шт.

3

221-841

PLUG

- pipe, 1/4-18 NPT

1шт.

4

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

- pipe, socket head

1шт.

5

700710827

SEAL

2шт.

6

ST991

BEARING CUP

BEARING - cup, tapered

3шт.

7

20879D

ROLLER BEARING,1.375" ID x 2.77" OD x 0.7813"

BEARING - cone, tapered

3шт.

8

700710823

GEAR

(1.35:1 imp 20 tooth)

1шт.

9

560953R91

BEARING ASSY,1.375" ID x 2.875" OD x 0.9688"

BEARING - cone, tapered

1шт.

10

165964R1

BEARING CUP

BEARING - cup, tapered

1шт.

11

700710828

OIL SEAL

RING - retaining

2шт.

12

700710815

PINION

SHAFT - pinion

1шт.

13

61-636

HEX SOC SCREW,3/8"-16 x 2 1/4"

3/8-16 X 2-1/4 HSHCS

9шт.

14

700710818

VALVE

PRESSURE - relief (5 psi)

1шт.

15

444030

REDUCER,1/2"-14 NPTF x 1/8"-27 Fem NPTF

1.2 X 1/8 NPT BUSHING - reducer

1шт.

16

700710819

DIPSTICK

1шт.

17

700710824

CASTING

(thru holes)

1шт.

18

700710821

GEAR

(1.35:1 imp 27 tooth)

1шт.

19

700710820

SPACER

1шт.

20

700711012

SHAFT

- cross

1шт.
