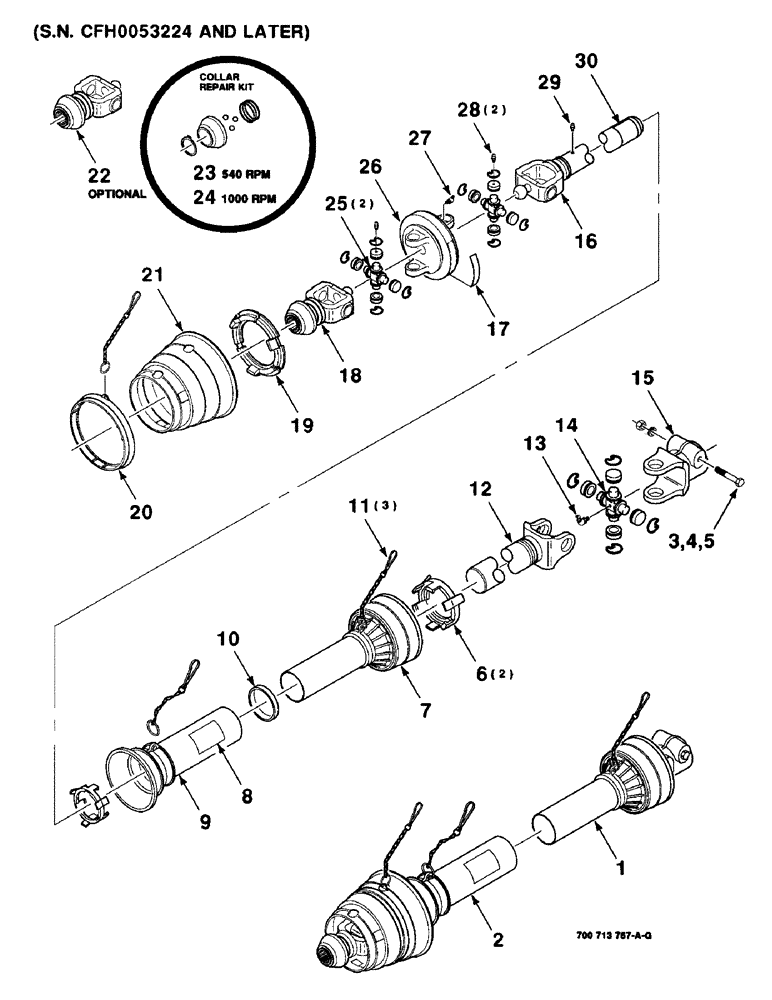

Запчасти Case IH 8480 (2-06) - IMPLEMENT DRIVELINE ASSEMBLY, 540 AND 1000 RPM, NEAPCO, SERIAL NUMBER CFH0053224 AND LATER Driveline

1

700713794

PTO

IMPLEMENT - half

1шт.

2

700713789

JOINT

TRACTOR - half (540 rpm)

1шт.

700713790

SHAFT

TRACTOR - half (1000 rpm)

1шт.

3

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1/2-13 X 3 C

1шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

6

700713781

GUARD

BEARING - shield

2шт.

7

700713793

SHIELD

- inner

1шт.

8

80672C1

DECAL

- danger

1шт.

9

700713787

SHIELD

- outer

1шт.

10

700709718

NYLON BEARING

BEARING - nylon

1шт.

11

700714256

CHAIN (AG)

CHAIN

3шт.

12

700713791

YOKE

TUBE, & SLEEVE

1шт.

13

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

1/8-27 X 65 DEGREE ZERK

1шт.

14

845198

KIT

CROSS & BEARING KIT

1шт.

15

8802910

CLAMP

YOKE - clamp

1шт.

16

700713786

YOKE

& SHAFT

1шт.

#16 700713786 per depot stock check has splines. csd 4/6/99

1шт.

17

700714285

DECAL

- danger

1шт.

18

700713772

COLLAR

- slide q.d. (540 rpm)

1шт.

700713788

YOKE

COLLAR - slide q.d. (1000 rpm)

1шт.

19

700713775

COLLAR

BEARING - CV

1шт.

20

700713774

RING, SNAP

RING - outer cv

1шт.

21

700713778

CONE

- cv

1шт.

22

700714128

BODY

1 3/4-20 SPLINE COLLAR - slide q.d.

1шт.

23

700714002

PACKAGE

SLIDE COLLAR KIT

1шт.

24

700714200

KIT

SLIDE COLLAR KIT

1шт.

25

700713773

KIT

CROSS & BEARING KIT

2шт.

26

700713777

HOUSING

ASSEMBLY - cv

1шт.

27

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1/4-28 X 45 DEGREE ZERK

1шт.

28

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

29

700713833

LUBE NIPPLE,3/16" x 25/64", drivetech

NIPPLE, LUBE, 3/16" x 25/64", drivetech

1шт.

30

700708583

DECAL

- danger

1шт.
